Backhoe Loader 575SV

The 575SV Backhoe Loader continues its strong CASE pioneering legacy, with the best components in its category, ensuring high performance, reliable and proven technology, and productivity-boosting solutions.

The S8000 engine maintains the best power and torque in its class. It is designed to optimize fuel consumption during operation and movement, especially for excavation applications with backhoe loaders.

The cabin is ergonomic, and its interior and exterior styling are completely new.

NET POWER

96 hp (72 kW)

OPERATING WEIGHT

7.662 kg

Specifications

Standard Equipment

ROPS/FOPS certified cabin
Note: ROPS compliant with ISO 3471 and FOPS compliant with ISO 3164
Rear fender extensions
Left and right external rearview mirrors
Internal rearview mirror
Toolbox
Left-side storage compartment
Windshield washer reservoir accessible from the ground
Two access doors
Fully opening rear window
Seat with mechanical suspension, 180-degree rotation, manual weight/height
adjustment, adjustable armrests, reclining backrest, 2" seatbelt
Front and rear windshield wipers and washers
Radio

CNH S8000 Tier 3 certified diesel engine
Full-flow engine oil filter
Replaceable dry-type air filter with radial seal
Muffler without spark arrestor
Radiator with expansion tank
Antifreeze down to -37 °C (-34 °F)
Manual and pedal throttles
Manually adjustable belt tensioner
Mechanical fan with five plastic blades

Front axle
Rear axle
No differential lock
Powershuttle with 4 forward and 4 reverse speeds (synchromesh
transmission)
Torque converter – 300 mm (11.8”)
On-the-move 4WD control
Electric forward/reverse control

Closed center with load sensing
145 l/min (38.3 gpm) pump at 2.200 rpm
10 μm spin-on type oil filter
Heavy-duty hydraulic oil cooler

Forward-tilting engine hood
Front protection and heavy-duty grille
Fixed steering column
Lightweight counterweight of 211 kg

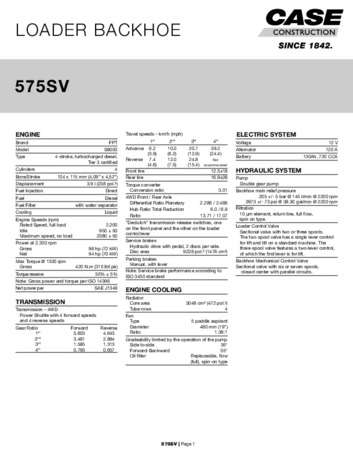

Specifications



ENGINE
Brand
Model
Type
Cylinders
Bore/Stroke
Displacement
Fuel Injection
Fuel
Net power per
TRANSMISSION
ELECTRIC SYSTEM
HYDRAULIC SYSTEM
SERVICE CAPABILITIES
