Backhoe Loader 580N S2
The 580N Series 2 and 580N Series 2 HD backhoe loaders confirm CASE’s pioneering spirit, bringing customers reliable, high-performance equipment with productivity-boosting solutions.
The engine, manufactured by CNH and used in other brand equipment, delivers greater power and torque, with optimized fuel consumption, providing higher productivity in all operations.
The new hydraulic pump is also a highlight: it provides higher flow, improving the response of hydraulic controls. The new arms and stabilizer pads ensure easier maintenance and greater stability.
NET POWER
96 hp (72 kW)
OPERATING WEIGHT
7.488 kg
Explore the features
Specifications
Standard Equipment
- Open ROPS/FOPS Cab
- Ignition via key
- Hydrostatic steering
- Fixed steering column (on the 580N Series 2 version) or tiltable (on the 580N Series 2 HD and 580N Series 2 Loader versions)
- Vinyl seat with mechanical suspension, armrest, and 180° rotation
- Loader control lever with differential lock activation switch and transmission disengage
- Backhoe with 2-lever control
- 90 x 275 mm internal rearview mirror
- 50.8 mm (2”) retractable seatbelt
- Cup holder and storage compartment
- Anti-vandalism cover for side panel
- Rubber mat
- Front windshield wiper and washer
- Lighting package with 4 halogen headlights:
- 2 front work lights
- 2 rear work lights
- 2 front turn signal and emergency indicators – amber
- 2 rear turn signal and emergency indicators – amber
- 2 red rear position and brake lights
- 2 15 A outlets on the right console
- Closed ROPS/FOPS Cab
- Fabric seat with mechanical suspension (on the 580N Series 2 version), pneumatic suspension (on the 580N Series 2 HD and 580N Series 2 Loader versions), adjustable armrest, and 180° rotation
- Hydrostatic steering
- Fixed steering column (on the 580N Series 2 version) or tiltable (on the 580N Series 2 HD and 580N Series 2 Loader versions)
- Clothes hook
- Ceiling light activated by door or switch
- Rear side windows with full opening and locking (standard on the 580N Series 2 HD and 580N Series 2 Loader versions), non-opening (standard on the 580N Series 2 version)
- Lighting package with 6 halogen headlights:
- 2 front, 2 rear, 2 side (one on each side)
- 2 front turn signal and emergency indicators – amber
- 2 rear turn signal and emergency indicators – amber
- 2 red rear position and brake lights
- 2 15 A outlets on the right console
- External rearview mirrors (on the 580N Series 2 HD version)
- Footrest (only with Pilot Control)
- Digital indicators with backlighting:
- Engine water temperature
- Converter oil temperature
- Fuel level
- Voltmeter (battery charge)
- Tachometer (rpm)
- Hour meter
- Warning lights:
- Air filter blockage
- Alternator
- Air conditioning – high or low pressure
- Water indicator in the fuel separator filter
- Engine oil pressure
- Hydraulic oil filter blockage
- Parking brake applied
- Low fuel level
- Sound alarms:
- Coolant temperature
- Engine oil pressure
- Converter oil temperature above 116 °C
- Parking brake applied
- Reversing alarm
- Dual horn activation (front and rear)
- Fleet monitoring system SiteWatch
- Modem and antenna
- Access to the Customer Portal for 2 years (with renewal option)
- Reported information:
- Location
- Hour meter
- Maintenance alerts
- Key position (off, instruments only, on)
- Front Tires:
- 12 x 16.5, 10 or 12 plies – 9.75” rim – Monopece*
- 12.5/80 x 18, 10 or 12 plies – 9” rim – Monopece**
- Rear Tires:
- 16.9L x 24, 10 plies – 15” rim – Monopece
- 17.5 x 25, 12 plies – 14” rim – Monopece
- 17.5 x 25, 16 plies – 14” rim – Three pieces
- 19.5L x 24, 12 plies – 16” rim – Monopece
- *Available only for standard front axle
- **Available only for HD front axle
- 4x4 – applied traction: 12 x 16.5 / 12.5 x 18
- Brakes applied: 3.800 / 4.350 mm
- Brakes not applied: 4.250 / 4.500 mm
- 4x4 – non-applied traction: 12 x 16.5 / 12.5 x 18
- Brakes applied: 3.450 / 3.850 mm
- Brakes not applied: 3.825 / 4.000 mm
- Open ROPS/FOPS Cab
- External rearview mirrors (optional, also available for the 580N Series 2 and 580N Series 2 Loader versions)
- Lighting package:
- 8 halogen headlights
- 4 LED headlights
- 8 LED headlights
- Backhoe with 3-lever control with swing pedal
- Backhoe with Pilot Control (only on the 580N Series 2 HD version).
- Closed ROPS/FOPS Cab
- AM/FM stereo MP3 radio
- Lighting package:
- 10 halogen headlights
- 6 LED headlights
- 10 LED headlights
- Backhoe with 3-lever control with swing pedal
- Backhoe with Pilot Control (only on the 580N Series 2 HD version)
- NOTE: The anti-vandalism side panel cover is not available for machines with a closed cab

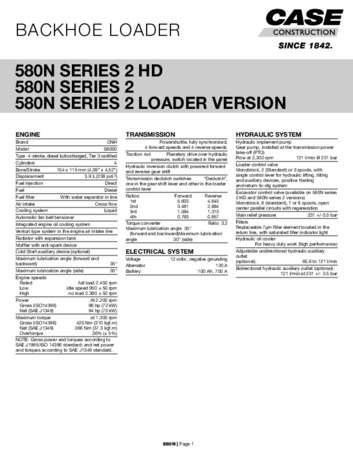

Technical Specifications
ENGINE | ||||||||
Brand | ||||||||
Model | ||||||||
Type | ||||||||
Cylinders | ||||||||
Bore/Stroke | ||||||||
Displacement | ||||||||
Fuel Injection | ||||||||
Fuel | ||||||||
Net power per | ||||||||
TRANSMISSION | ||||||||
ELECTRIC SYSTEM | ||||||||
HYDRAULIC SYSTEM | ||||||||
SERVICE CAPABILITIES | ||||||||
