With the CASE 1150L Crawler Tractor, you have maximum productivity and efficiency in all application conditions, without gear shifting, as well as easy and safe operation, even on inclined terrains.
In addition, CASE provides cutting-edge technology so you can fully harness the machine's potential. The electro-hydraulic joystick and modern instrument panel ensure perfect control of the blade, movements, and overall control, with minimal effort.
Hydrostatic transmission with two-way infinitely variable control by a single lever with direct electronic monitoring, power-turn connection, and counter-rotation.
Final transmission:
Triple reduction; helical gear/planetary decelerator with hydrostatic engagement delay.
Parking brake with spring-applied and hydraulically released.
15 incremental speed settings and adjustable differential speed configuration for forward/reverse travel.
Settings according to operator preferences for maximum speed, shuttle sensitivity, and steering sensitivity.
Decelerator with selectable engine deceleration mode or transmission braking mode.
FPT F4HE9684K*J105
Tier 3 / MAR-I Certification
Automatic fan belt tensioner
Engine oil cooler
Fuel filter
Dual element radial-sealed air filter
Turbine-type pre-filter
65 A alternator
(2) 750 CCA 12 V batteries
Cooling system with sand projection-protected radiators. Excellent maintenance access through the engine side panels
Triple reduction in final drives
SAHR parking brake (spring-applied and hydraulically released)
Manual tilt adjustment from 55° to 60°
Blade control with a single lever (electro-hydraulic) on the operator's right side, with infinitely variable positions to control the six blade functions (up, down, left and right angling, left and right oscillation)
3 teeth with 3 positions
Hydraulic track tension adjustment via grease injection
CASE lubricated tracks (CLT)
Sealed and lubricated pins, sealed and lubricated upper and lower rollers
Front and rear track guides
Vandalism protection package
Reversing alarm
Horn
2 front lights
1 rear light
Main disconnect switch
Interior mirror
Pre-installation for SiteWatch monitoring system
Front tow hook
Seatbelt: 50,8 mm (2 inches)

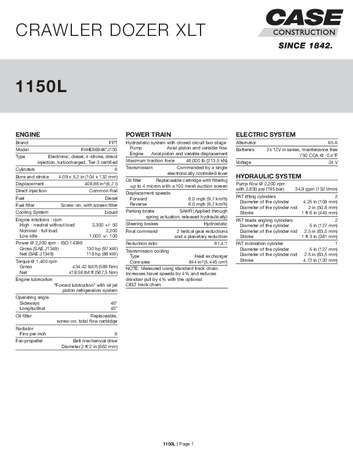

Specifications
Optional
Rear windshield wiper
Drains that protect the environment during fluid changes
Intake air heater for cold weather starting
Additional work lights, totaling four front and two rear
