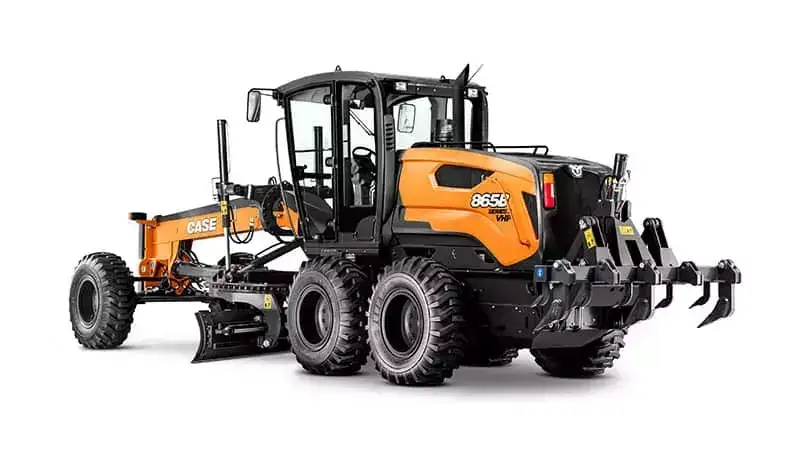

Grader 865B Series 2

• Closed high-profile cabin (fixed front window) ROPS/FOPS
• Air conditioning (*)
• Adjustable seat with mechanical suspension, fabric covering, with 50.8 mm (2”) seatbelt
• Adjustable operator console
• Pedal accelerator
• Manual accelerator
• Front upper windshield wiper with washer
• Safety glass
• Ceiling light
• Internal and external rearview mirrors
• 12 V outlet (*)
• Automatic master switch on ignition
• Steps on the right and left sides

(*) Only available in closed cabins. All ROPS/FOPS cabins are certified according to SAE J1040 (ROPS) and SAE J231 (FOPS) standards

• FPT 6.7 L turbocharged, diesel, Certification - Tier 3 / Mar-I
• Electronic fuel injection
• Dry air filter with primary and secondary safety elements
• Air prefilter with cyclonic dust ejector
• 90 A alternator
• 10.5 hp (7.8 kW) starter motor
• Tilting hood with electric opening and closing

• Hydraulic system with load sensing, closed center
• 9-section control valve
• Hydraulic control for all functions: blade lifting (right and left sides), circle turning, circle lateral movement, wheel inclination, chassis articulation, lateral and angular blade movement, front and rear attachments
• Diagnostic center with 8 quick connectors
• Mobile seal with 5 service positions and hydraulic lock
• Blade size 3.962 x 671 x 22 mm – (13’)
• Axial piston hydraulic pump
• Hydraulic motor-driven fan

• Multidisc oil bath service brakes applied on all 4 rear wheels with two parallel circuits: one for the right tandem wheels and one for the left tandem wheels. Safety system with two nitrogen accumulators
• Parking disc brakes applied by spring and released hydraulically

• 14” rim, 3 pieces / 17.5 x 25 - 12L - L2, tubeless

• Conventional differential with four-wheel braking and differential lock with electro-hydraulic operation (rear axle)

• Hydrostatic steering with integrated emergency system

• Light ripper with 5 small teeth - 795 kg

• Front counterweight - 520 kg

• Electronic Information Center
• Indicators/gauges: speedometer, tachometer, selected steering direction F/N/R, automatic/manual transmission modes, selected gear, engine cooling temperature, fuel level, transmission oil temperature, hydraulic oil temperature, hour meter
• Fuel consumption
• Engine diagnostics
• DeClutch activated indicator
• Transmission diagnostics
• Indicator lights: low fuel level, directional lights, high beam, brake pressure, main alert, parking brake

• Precaution alert
• Emergency alert
• Reverse alarm

• Standard tool kit.
• Tow bar / Standard circle.

• Lights: front headlamp with turn signal (2), rear brake and turn signal lights (2), rear service light on top of the cabin (2), front service light on top of the cabin (2), 24 V system (2 x 12 V batteries / 1010 CCA).
• Electronic systems monitoring
• Horn
• Hour meter
• Reverse alarm

• Closed low cabin (tilting front window)

• Front blade: 1.165 kg
• Light push plate: 492 kg
• Heavy push plate: 800 kg
• Front scarifier with 5 teeth, 6 additional scarifier teeth: 690 kg
• Front blade float electrovalve

• Additional ripper teeth (2 large and 4 small)
• Rear tow hook
• Machine lifting support

• Blade of 3.658 x 622 x 22 mm (12’)
• Blade of 4.267 x 671 x 22 mm (14’)
• Right blade extension 610 mm
• Left blade extension 610 mm
• Additional Heavy Duty blade tip

• 2 service lights behind the blade
• 2 service lights in front of the central blade
• 2 service lights for the front implement

• Cylinder lock valve for central blade lift
• Central blade float electrovalve (incorporates the lock valve)
• Anti-shock electrovalve with 2 accumulators for central blade
• Anti-shock electrovalve with 3 accumulators for central blade and circle

• Tubeless tires
• 10” Rim – 3 pieces / 14x24 tire – 12L – G2
• 13” Rim – single piece / 17.5x25 tire – 12L – L2
• 14” Rim – 3 pieces / 17.5x25 tire – 12L – L2
• 14” Rim – 3 pieces / 17.5x25 tire – 16L – L3
• Tires with tubes
• 9” Rim – single piece / 14x24 tire – 12L – G2
• 10” Rim – 3 pieces / 14x24 tire – 12L – G2
• Radial tubeless tires
• 9” Rim – single piece / 14x24 tire – 12L – L2
• RADIAL XGLA2
• 10” Rim – 3 pieces / 14x24 tire – 12L – L2
• RADIAL XGLA2
• 13” Rim – single piece / 17.5x25 tire – XTLA
• 14” Rim – 3 pieces / 17.5x25 tire – XTLA
