Adjustable suspension vinyl seat, with a 50.8 mm (2”) seatbelt
Adjustable operator console
Pedal accelerator
Manual accelerator
Front windshield wiper with washer
Safety glass
Ceiling light
Internal and external rear-view mirrors
12 V (*) power supply
Automatic master switch
Steps on the right and left sides
(*) Only available in closed cabins
FPT / F4HE613B*W002
Turbocharged, diesel
Dry air filter with primary and secondary safety elements
Air pre-filter with cyclonic dust ejector
90 A alternator
Swing-up hood, diesel
Hydraulic system with load sensor, closed center 9-section control valve
Hydraulic control for all functions: blade lifting (right and left side), circle turn, side shift of the circle, wheel lean, frame articulation, blade side shift and pitch, front and rear accessories
Diagnostics center with 8 quick couplers
Hydraulic axial piston pump
Hydraulic engine fan
Multidisk oil-bathed service brakes with nitrogen accumulator safety system
Disk parking brake integrated into the transmission with warning light
9" Single piece rim / 14 x 24
Standard tool kit
Drawbar / Standard circle
Conventional differential with brakes on 4 wheels and differential locking with electrohydraulic mechanism (rear axle)
Hydrostatic steering with integrated emergency system
Electronic Information Center
Indicators/gauges:
Tachometer
Direction selected F/N/R
Transmission modes - automatic/manual
Selected gear
Engine cooling temperature
Fuel level
Transmission oil temperature
Hydraulic oil temperature
Hourmeter
Fuel consumption
Engine diagnostics
Transmission diagnostics
Low fuel level
Floodlights
High beam
Brake pressure
Main alert
Parking brake
Warning alert
Emergency alert
Reversing alert
Lights
Front headlight with direction indicators (2)
Rear brake light and direction indicators (2)
Rear work light on top of the cabin (2)
Front work light on top of the cabin (2)
24 V system (Two 12 V batteries 12 V / 750 CCA)
Electronic system monitoring
Horn
Hourmeter
Reverse alarm
ZF transmission of torque conversion type with lock up (also functions as Direct Drive), Powershift, 6 forward speeds and 3 reverse speeds, automatic gear shift, emergency electrical failure device (Limp-Home)
All ROPS/FOPS cabins are certified in accordance with the SAE J1040 (ROPS) and SAE J231 (FOPS) standards.

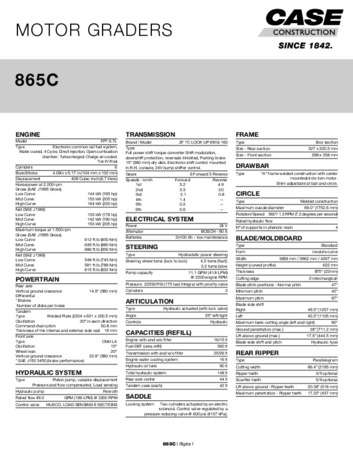

Specifications
Optional Equipment
Air conditioner for closed cab
Fire extinguisher
Windshield washer and lower windshield wipers
Rear windshield washer and wipers
Radio
Tandem lock device
Rear fogger
Drawbar / Heavy Duty circle
Front counter weight
Lighting on dozer blade
3.658 x 671 x 22 mm blade
3.962 x 671 x 22 mm blade
4.267 x 671 x 22 mm blade:
–304.8 mm right blade extension
–304.8 mm left blade extension
Medium ripper with 3 large teeth and 5 small teeth
2 additional large teeth and 4 additional small teeth
Rear pull hook
Support for lifting the machine
2 work lights behind the blade
2 work lights mounted in front of the moldboard
2 work lights on the front attachment
Revolving safety light
Luxury toolbox
Toolbox without tools, with support, mounted on the rear frame
