High-profile closed cabin (fixed front window) ROPS/FOPS
Air conditioning (*)
Adjustable seat with mechanical suspension, fabric covering, with 50.8 mm (2”) seatbelt
Adjustable operator console
Pedal accelerator
Manual accelerator
Upper front windshield wiper with washer
Safety glass
Roof light
Internal and external rearview mirrors
12 V socket (*)
Automatic main switch on ignition
Steps on both right and left sides
(*) Available only in closed cabins. All ROPS/FOPS cabins are certified according to SAE J1040 (ROPS) and SAE J231 (FOPS) standards
FPT 6.7 L turbocharged, diesel, Tier 3 / MAR-I Certification
Electronic fuel injection
Dry air filter with primary and secondary safety elements
Air pre-filter with cyclonic dust ejector
90 A alternator
10.5 hp (7.8 kW) starter motor
Tilting hood with electric opening and closing
Load-sensing hydraulic system, closed center
9-section control valve
Hydraulic control for all functions: blade lift (right and left side), circle rotation, lateral displacement of the circle, wheel tilt, chassis articulation, lateral and angular blade displacement, front and rear attachments
Diagnostic center with 8 quick couplers
Mobile seal with 5 service positions and hydraulic lock
Blade of 4.267 x 671 x 22 mm – (14’)
Axial piston hydraulic pump
Fan powered by hydraulic motor
Ventilador accionado por motor hidráulico
Multi-disc oil bath service brakes applied to the 4 rear wheels with two parallel circuits: one for the right tandem wheels and one for the left tandem wheels. Safety system with two nitrogen accumulators
Spring-applied, hydraulically released parking disc brakes
14” Rim 3 pieces / 17.5 x 25 – 12L – L2 tubeless
Conventional differential with brake on all four wheels and electro-hydraulic differential lock (rear axle)
Hydrostatic steering with integrated emergency system
Ripper with 3 large teeth and 5 small teeth 850 kg
Lights: front headlight with turn signal (2), rear brake light and turn signal (2), rear service light on top of the cabin (2), front service light on top of the cabin (2)
24 V system (2 x 12 V batteries / 1010 CCA)
Electronic system monitoring
Horn
Hour meter
Reverse alarm

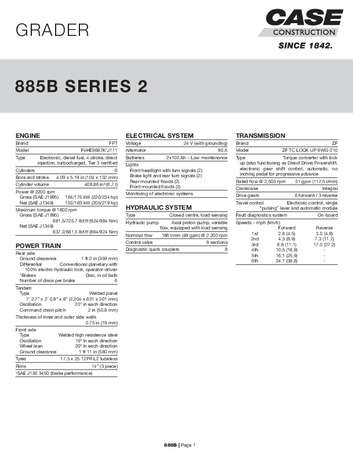

Specifications
Optional
Vinyl seat with mechanical suspension
Fabric seat with pneumatic suspension
Seat belt – 76.5 mm (3”)
Low closed cabin (tilting front window)
Heater and fan for closed cabin
Acoustic insulation for closed cabin
Fire extinguisher
Windshield washer and lower front wipers
Windshield washer and rear wipers
Radio
Tandem lock device
Sunshades (front and rear)
Rear defroster
Front blade 1.165 kg
Light push plate 492 kg
Heavy push plate 800 kg
Front scarifier with 5 teeth and 6 additional teeth 690 kg
Front blade float electrovalve
Additional teeth for ripper (2 large and 4 small)
Rear towing hook
Machine lifting support
Blade (3.658 x 622 x 22) mm (12’)
Blade (3.962 x 671 x 22) mm (13’)
Right blade extension 610 mm
Left blade extension 610 mm
Additional Heavy Duty blade tip
2 service lights behind the blade
2 service lights in front of the center blade
2 service lights for front implement
Rotating beacon
Luxury toolbox
Tool-free box with support, fixed to the front chassis
Slow movement symbol
Electric tire inflation pump
Spare tire support
RIMS
9” Rim – single piece with valve
13” Rim – single piece with valve
10” Rim – 3 pieces with valve
14” Rim – 3 pieces with valve
Tubeless tires
9” Rim – single piece / tire 14x24 – 12L – G2
10” Rim – 3 pieces / tire 14x24 – 12L – G2
13” Rim – single piece / tire 17.5x25 – 12L – L2
14” Rim – 3 pieces / tire 17.5x25 – 16L – L3
Tires with tube
9” Rim – single piece / tire 14x24 – 12L – G2
10” Rim – 3 pieces / tire 14x24 – 12L – G2
Radial tires without tube
9” Rim – single piece / tire 14x24 – 12L – L2 – RADIAL XGLA2
