Excavator CX130C
The CX130C crawler hydraulic excavator has 13 tons that ensure productivity, enhanced versatility, power, comfortable and safe operations, in addition to easy maintenance.
This crawler excavator model is part of the CASE C series. It has an operating weight of 13.300 kg and 98 hp power.
MAKE A QUOTE

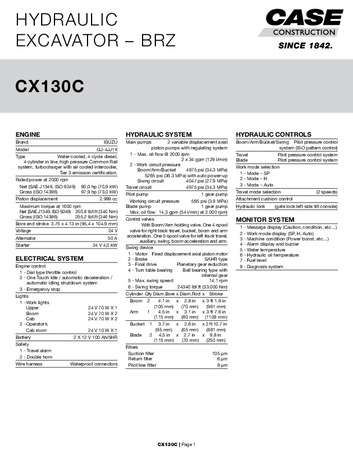

Download Brochures
Share or download the technical brochure.
Brochure
0.37MBNET POWER
95 hp (71 kW)
OPERATING WEIGHT
13.300 kg
Explore the features
Specifications
Standard Equipment
- Cushioning system with four supports.
- ROPS and FOPS level 1 protection.
- Pneumatic suspension seat.
- 3-inch seat belt.
- Automatic air conditioning.
- AM/FM radio with auto-tuning, Bluetooth, and USB input.
- 7" control panel screen with options for rear and side cameras.
- Joystick levers for hydraulic functions.
- Travel pedals with auxiliary manual control levers.
- Footrests.
- Flip-up windshield with end-stop sensor.
- Tiltable sunroof.
- Two-speed intermittent windshield wipers with water spray.
- Sliding left side window.
- External rearview mirror.
- Interior light.
- Cup holders, storage compartments, and phone holder.
- Dual master switch (mechanical/electrical).
- Isuzu turbocharged engine Tier 3 / Mar-1.
- Dial-type throttle control.
- Automatic engine deceleration.
- Electronic speed control.
- Auto Idle feature.
- Auto Stop feature.
- Two batteries.
- Electronic monitoring and diagnostic system.
- Work lights on the boom and front cab.
- 50A alternator.
- Standard ISO pilot controls.
- Work mode selector: A, H, and SP.
- Auxiliary mode for attachments (hammer, shears, processors, etc.).
- AUTO Power Up.
- Two variable-flow piston pumps of 129 l/min each.
- Automatic pump flow reduction.
- Cylinders with electronically managed cushioning at stroke ends and regenerative system.
- Boom: 4.630 m – monoblock.
- Penetration arm: 3.01 m.
- Electronically managed swing brake.
- Swing ring in grease bath.
- 600 mm triple grouser shoes.
- Track length: 3,760 mm.
- Track gauge: 1,990 mm.
- Sealed and lubricated track.
- Hydrostatic two-speed track drive motor.
- SAHR disc parking brakes.
- Dual track guides.
- Centralized lubrication for monoblock arm.
- GD bucket: 0.55 m³.
- Optional Features
- Excavation arm: 2.50 m.
- Buckets for general use, rock, or severe applications.
- 700 mm track shoes.
- Blades of 2,590 mm or 2,690 mm.
- Pre-installation for hydraulic hammer, rotating grapple, or hydraulic shears.
- Front and upper protection (FOPS level 2).
- Mechanical low-frequency seat with suspension.
- Rearview and side cameras.
- SiteWatch monitoring system (cellular/satellite telemetry).
Specifications
Optional
- 8’ 2,4” (2,50 m) excavation arm
- Buckets for general applications, rock and severe applications
- 2’ 3,5” (700 mm) shoes
- 8’ 5,9” (2590 mm) blade
- 8’ 9,8” (2690 mm) blade
- Prepared for hydraulic hammer
- Prepared for rotating grab
- Prepared for hydraulic scissors
- Prepared for forest processor
- Auxiliary lighting
- Front protection
- Level 2 FOPS superior protection
- Adjustable angle seat with low frequency mechanical suspension with helical springs and double action hydraulic damper
- Rear view camera
- Side view camera
- Rotating beacon
- SiteWatch control system (cell phone / satellite telemetry)
- Advanced telemetry subscription 1, 2, 3, 4 or 5 years
- Fuel refueling pump
ENGINE | |||||||||||||||
Brand | |||||||||||||||
Model | |||||||||||||||
Type | |||||||||||||||
Piston displacement | |||||||||||||||
Bore and strok | |||||||||||||||
Voltage | |||||||||||||||
Alternator | |||||||||||||||
Starter | |||||||||||||||
HYDRAULIC SYSTEM | |||||||||||||||
HYDRAULIC CONTROLS | |||||||||||||||
ELECTRICAL SYSTEM | |||||||||||||||
OPERATOR’S ENVIRONMENT | |||||||||||||||
