Excavator CX180C
The CX180C hydraulic excavator has 18 tons that ensure productivity, enhanced versatility, power, comfortable and safe operations, in addition to easy maintenance.
This excavator model is part of the CASE C series. It has an operating weight of 17.711 kg and 123 hp power.
MAKE A QUOTE
Download Brochures
Share or download the technical brochure.

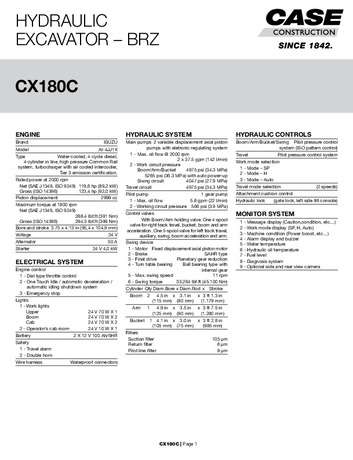

SPEC - CX180C
0.44MBNET POWER
119.6 hp (89.2 kW)
OPERATING WEIGHT
17.711 kg
Explore the features
Specifications
Standard Equipment
- Oil-dampened suspension with 4 supports.
- Cab with ROPS and FOPS level 1 protection.
- Fabric seat with mechanical suspension.
- 3" seat belt.
- Automatic air conditioning.
- AM/FM radio with automatic tuning, Bluetooth, and USB input.
- Control panel with a 7" display and options for rear and right-side cameras.
- Joystick-type levers for hydraulic function controls.
- Travel pedals with auxiliary manual control levers.
- Footrests.
- Safety lever that neutralizes hydraulic functions with an action delay timer.
- Front windshield tiltable upwards with a limit switch sensor.
- Tilt and sliding sunroof.
- Front intermittent wiper with two speeds and washer.
- Left sliding side window.
- External rearview mirror.
- Interior light.
- Cup holders, storage compartments, and phone holder.
- Dual main switch.
- Batteries (2).
- Electronic monitoring/diagnostic system.
- Boom work lights.
- Work lights on the front of the cab.
- 50A alternator.
- Turbocharged Isuzu Tier 3/Mar-1 engine.
- Dial-type throttle control.
- Automatic engine deceleration.
- Electronic engine speed control.
- Auto-idle device.
- Boom: 5.150 mm – monoblock.
- Digging arm: 2.62 m.
- Swing brake with electronic management.
- Swing bearing with grease bath.
- 600 mm triple grouser track shoes.
- Track length: 3.990 mm.
- Track gauge: 1.990 mm.
- Sealed and lubricated tracks.
- Two-speed hydrostatic track drive.
- SAHR disc parking brakes.
- ISO standard pilot controls.
- Work mode selector: A, H & SP.
- Auxiliary mode for attachments (hammer, shears, processors, etc.).
- AUTO Power Up.
- Two variable displacement piston pumps: 2 x 142 l/min.
- Automatic pump flow reduction.
- End-of-stroke cushioning cylinders with a regenerative system.
- Centralized lubrication for monoblock boom
- General Duty (GD) bucket: 0.98 m³
Specifications
Optional
- Optional Features
- Digging arm: 3.05 m
- Buckets for general, rock, and severe applications (see table on page 4)
- 700 mm track shoes
- Pre-wiring for a hydraulic hammer
- Pre-wiring for a rotating grapple
- Pre-wiring for hydraulic shears
- Pre-wiring for a forestry processor
- Lower frame protective cover
- Auxiliary lighting
- Front guard
- Upper guard (FOPS Level 2)
- Low-frequency mechanical suspension seat
- Rotating beacon
- Side-view camera
- Rear-view camera
- SiteWatch monitoring system (cellular and/or satellite telemetry)
- Advanced telemetry subscription (1 to 5 years)
- Fuel refueling pump
ENGINE | |||||||||||||||
Brand | |||||||||||||||
Model | |||||||||||||||
Type | |||||||||||||||
Piston displacement | |||||||||||||||
Bore and strok | |||||||||||||||
Voltage | |||||||||||||||
Alternator | |||||||||||||||
Starter | |||||||||||||||
HYDRAULIC SYSTEM | |||||||||||||||
HYDRAULIC CONTROLS | |||||||||||||||
ELECTRICAL SYSTEM | |||||||||||||||
OPERATOR’S ENVIRONMENT | |||||||||||||||
