Excavator CX220C Series 2
The CX220C Series 2 hydraulic excavator has 20 tons that ensure productivity, enhanced versatility, power, comfortable and safe operations, in addition to easy maintenance.
This excavator model is part of the CASE C series. It has an operating weight of 22.149 kg and 158 hp power.
NET POWER
147,8 hp (110,2 kW)
OPERATING WEIGHT
22.149 kg
Explore the features
Specifications
Standard Equipment
- Oil-damped suspension system with 4 mounts
- ROPS and FOPS Level 1 protection cab
- Fabric seat with pneumatic suspension
- 3-inch seatbelt
- Automatic air conditioning
- AM/FM radio with auto-tuning, Bluetooth, and USB port
- 7-inch control panel with rear and side-view camera options
- Joystick levers for hydraulic functions
- Travel pedals with auxiliary manual control levers
- Footrests
- Safety lever that neutralizes hydraulic functions with a delay timer
- Foldable front windshield with limit sensor
- Solar and tilting roof
- Intermittent front windshield wiper with two speeds
- Batteries (2)
- Electronic monitoring and diagnostic system
- Boom work lights
- Front cab work lights
- 90A alternator
- Standard ISO pilot controls
- Work mode selector: A, H & SP
- Auxiliary mode for attachments (hammer, shears, processors, etc.)
- AUTO Power Up
- Two variable flow piston pumps: 2 x 211 l/min
- Automatic flow reduction for pumps
- Cylinders with end-of-stroke cushioning and regenerative system
- FPT turbocharged Tier 3 / Mar-1 engine
- Dial-type throttle control
- Automatic engine deceleration
- Electronic engine speed control
- Auto-idle system
- Cyclonic air pre-filter
- Boom: 5.700 mm – monoblock
- Digging arm: 2.400 mm
- Swing brake electronically managed
- Swing bearing in grease bath
- Track shoes: 600 mm with triple grouser
- Track length: 4.470 mm
- Track gauge: 2.390 mm
- Sealed and lubricated tracks
- Hydrostatic travel system with two speeds
- Parking brake: disc type (SAHR)
- Centralized lubrication for the monoblock arm
- GD bucket: 1.3 m³ WD
Specifications
Optional
- Digging arm: 2.94 m
- Buckets for general applications, rock, and severe-duty tasks (see table on page 4)
- Track shoes: 700 mm, 800 mm
- Triple track guides
- Hydraulic hammer pre-wiring (pedal or joystick)
- Rotating grapple pre-wiring (pedal or joystick)
- Hydraulic shear pre-wiring (pedal or joystick)
- Forest processor pre-wiring
- Auxiliary lighting
- Front guard protection
- Upper guard protection (FOPS Level 2)
- Low-frequency mechanical suspension seat with coil springs and dual-action hydraulic damper
- Rotating beacon
- Side-view camera
- Rear-view camera
- SiteWatch monitoring system (cellular and/or satellite telemetry) with subscription options for 1, 2, 3, 4, or 5 years
- Fuel refueling pump

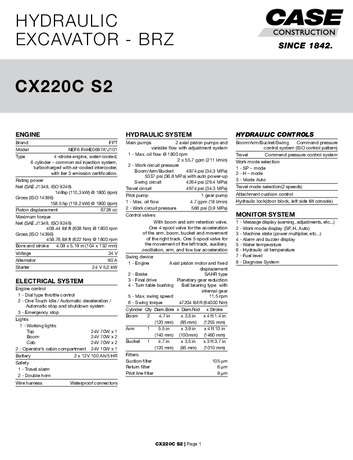

ENGINE | ||||||||||||||||
Brand | ||||||||||||||||
Model | ||||||||||||||||
Type | ||||||||||||||||
Piston displacement | ||||||||||||||||
Bore and strok | ||||||||||||||||
Voltage | ||||||||||||||||
Alternator | ||||||||||||||||
Starter | ||||||||||||||||
HYDRAULIC SYSTEM | ||||||||||||||||
HYDRAULIC CONTROLS | ||||||||||||||||
ELECTRICAL SYSTEM | ||||||||||||||||
OPERATOR’S ENVIRONMENT | ||||||||||||||||
