Excavator CX240C Mass Excavator
The CX240C Mass Excavator hydraulic excavator has 24 tons that ensure productivity, enhanced versatility, power, comfortable and safe operations, in addition to easy maintenance.
This excavator model is part of the CASE C series and was designed for heavy-duty tasks that move large volumes of material. It has an operating weight of 23.472 kg and 158 hp power.
MAKE A QUOTE

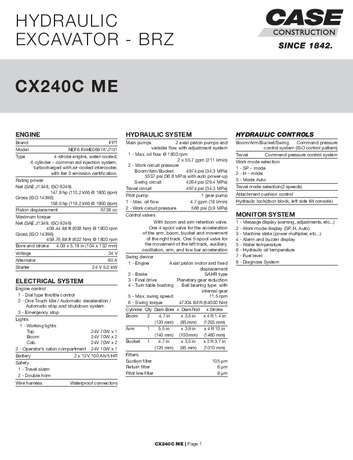

Download Brochures
Share or download the technical brochure.
Brochure
0.36 MBNET POWER
147.8 hp (110,2 kW)
OPERATING WEIGHT
23.472 kg
Explore the features
Specifications
Standard Equipment
- Oil-damped system with four supports.
- Cab with ROPS and FOPS level 1 protection.
- Fabric seat with pneumatic suspension.
- 3’’ safety belt.
- Automatic air conditioning.
- AM/FM radio with automatic tuning, Bluetooth, and USB input.
- Control panel with a 7’’ screen and options for rear and right-side cameras.
- Joystick levers for hydraulic function controls.
- Travel pedals with auxiliary levers for manual control.
- Footrests.
- Safety lever that neutralizes hydraulic functions with a delay timer.
- Windshield tilts upward with end-of-travel sensor.
- Tilting sunroof.
- Intermittent front windshield wiper with two speeds and washer.
- Sliding left-side window.
- External rearview mirror.
- Interior light.
- Cup holder, storage compartments, and phone holder.
- Dual master key.
- FPT turbocharged Tier 3 / Mar-1.
- Dial-type throttle control.
- Automatic engine deceleration.
- Electronic engine speed control.
- Auto-idle system.
- Cyclonic air pre-filter.
- Batteries (2).
- Electronic monitoring/diagnostic system.
- Work lights on the arm.
- Work lights on the front of the cab.
- 90A alternator.
- ISO standard pilot controls.
- Work mode selector: A, H & SP.
- Auxiliary mode for attachments (hammers, shears, processors, etc.).
- Auto Power Up.
- Two variable flow piston pumps 2x 211 l/min.
- Automatic pump flow reduction.
- End-of-stroke cushioned cylinders with electronically controlled regenerative system.
- Arm: 5.160 mm – monoblock.
- Penetration arm: 2.450 mm.
- Electronically managed swing brake.
- Swing ring with grease bath.
- Shoes: 600 mm with triple grousers.
- Track length: 4.465 mm.
- Track width: 2.390 mm.
- Sealed and lubricated tracks.
- Hydrostatic two-speed travel drive.
- SAHR disc parking brakes.
- Centralized lubrication for monoblock arm.
- HD bucket: 1.5 m³.
Specifications
Optional
- Buckets for general-purpose, rock, and severe-duty applications (see table on page 4).
- Shoes: 700 mm, 800 mm.
- Single track guides.
- Preparation for unidirectional/bidirectional hydraulic accessories with on/off or proportional control via pedal or joystick.
- Front protection.
- Upper protection (FOPS level 2).
- Seat with low-frequency mechanical suspension, coil springs, and dual-action hydraulic damper.
- Side-view camera.
- Rotating beacon.
- SiteWatch monitoring system (cellular and/or satellite telematics).
- Advanced telematics subscription for 1, 2, 3, 4, or 5 years.
- Rear-view camera.
- Fuel refill pump.
ENGINE | ||||||||||||||||
Brand | ||||||||||||||||
Model | ||||||||||||||||
Type | ||||||||||||||||
Piston displacement | ||||||||||||||||
Bore and strok | ||||||||||||||||
Voltage | ||||||||||||||||
Alternator | ||||||||||||||||
Starter | ||||||||||||||||
HYDRAULIC SYSTEM | ||||||||||||||||
HYDRAULIC CONTROLS | ||||||||||||||||
ELECTRICAL SYSTEM | ||||||||||||||||
OPERATOR’S ENVIRONMENT | ||||||||||||||||
