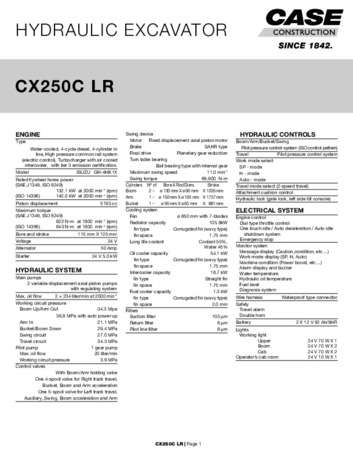

The CX250C LR hydraulic excavator has 20 tons that guarantee productivity, improved versatility, power, comfortable and safe operations, as well as easy maintenance.
This excavator model belongs to the CASE C series. It has an operating weight of 29.800 kg and a power of 270.78 hp.
Shock-less cab suspension by 4-point fluid mounting
Sliding front window with automatic block
Full color LCD screen included
Membrane switch on the display screen
Windscreen wipers and washer
AM/FM radio with automatic tuner
Floor carpet
Ceiling hatch of polycarbonate and sun protection
Automatic air conditioning
Top FOPS defense level 1 (on the cabin’s chassis)
Rollover protection structure (ROPS)
Operator’s seat with low frequency mechanical suspension with helical spring and double acting hydraulic damper, manual weight adjustment, back angle adjustment, adjustable armrest height attached to the consoles, adjustable back support.
The control consoles are adjusted independently from the seat
Back mirror
Double horn
Movement alarm
Joystick-like levers to control hydraulic functions
Safety levers to neutralize hydraulic functions and engine start
4-stroke engine, water-cooled, 4 cylinder
Common rail injection system, turbocharged with air-cooled intercooler, with tier 3 emission certification.
With ISO standardized control system
Work mode selection Auto, H and SP
Auxiliary accessory mode
Auto power up
2 variable flow pump
Electronic flow control
Cylinders with end cushioning - 1 pump for the pilot system - 8.000 mm long arm - 10.300 mm boom length
Travel speeds
High: 5,5 km/h (automatic speed change)
Low: 3,5 km/h
Quantity of upper roller: 2 (on each side)
Quantity of rollers on each track: 9 (on each side)
