Excavator CX350C
The CX350C hydraulic excavator has 38 tons that ensure productivity, enhanced versatility, power, comfortable and safe operations, in addition to easy maintenance.
This excavator model is part of the CASE C series and has an operating weight of 37.997 kg and 284 hp power.
MAKE A QUOTE
Download Brochures
Share or download the technical brochure.

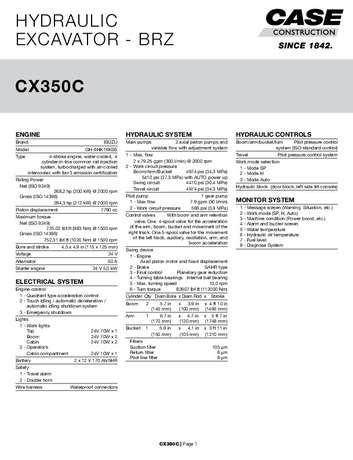

SPEC - CX350C
0.34MBNET POWER
268,2 hp (200 kW)
OPERATING WEIGHT
37.997 kg
Explore the Features
Specifications
Standard Equipment
- Oil-damped system with 4 mounts.
- Cab with ROPS and FOPS level 1 protection.
- Fabric seat with pneumatic suspension.
- 3" seat belt.
- Automatic air conditioning.
- AM/FM radio with auto-tuning, Bluetooth, and USB port.
- 7" control panel display with options for rear and right-side cameras.
- Joystick-type levers for hydraulic function control.
- Travel pedals with auxiliary levers for manual control.
- Footrests.
- Safety lever that neutralizes hydraulic functions with a delay timer.
- Tiltable front windshield with end-of-travel sensor.
- Tilting sunroof.
- Intermittent front windshield wiper with two speeds and a washer system.
- Sliding left-side window.
- External rearview mirror.
- Interior light.
- Cup holder, storage compartments, and phone holder.
- Double master switch.
- Turbocharged Isuzu Tier 3 / Mar-1 engine.
- Dial-type throttle control.
- Automatic engine deceleration.
- Electronic engine speed control.
- Auto-idle device.
- Cyclonic air pre-cleaner.
- Two variable flow piston pumps, each 300 L/min.
- End-of-stroke cushioning cylinders with regenerative system.
- ISO-standard pilot controls.
- Work mode selector: A, H & SP.
- Auxiliary mode for attachments (hammers, shears, processors, etc.).
- Auto Power Up system.
- Automatic pump flow reduction.
- Batteries (2).
- Electronic monitoring/diagnostic system.
- Arm work lights.
- Front cab work lights.
- 50A alternator.
- Boom: 6,450 mm (monoblock).
- Arm: 3,25 m.
- Electronically managed swing brake.
- Swing bearing lubricated in an oil bath.
- 700 mm triple grouser shoes.
- Track length: 4.980 mm.
- Double track guides.
- Track gauge: 2.600 mm.
- Sealed and lubricated tracks.
- Hydrostatic travel drive with two-speed system.
- SAHR disk parking brakes.
OPTIONALS
Optional Equipment
- Buckets for general use, rock, and heavy-duty applications (see table on page 4).
- Shoes: 700 mm, 800 mm.
- Single track guide.
- Hydraulic auxiliary configurations: unidirectional/bidirectional with on/off or proportional control via pedal or joystick.
- Front guard.
- Upper guard (FOPS level 2).
- Low-frequency mechanical suspension seat with coil springs and double-action hydraulic dampers.
- Side-view camera.
- Rotating beacon.
- SiteWatch monitoring system (cellular and/or satellite telemetry).
- Advanced telemetry subscription for 1, 2, 3, 4, or 5 years.
- Rearview camera.
- Fuel refill pump.
