Excavator CX370C Mass Excavator
Equipped with an advanced hydraulic system, the CX370C Mass Excavator hydraulic excavators provide the best balance between power and speed, combined with a robust engine that ensures immediate response and flexibility.
The high digging force and high swing torque result in faster work cycles, in addition to the spacious and comfortable cabin, ideal for long workdays.
MAKE A QUOTE
Download the Brochure
Share or download the technical brochure.

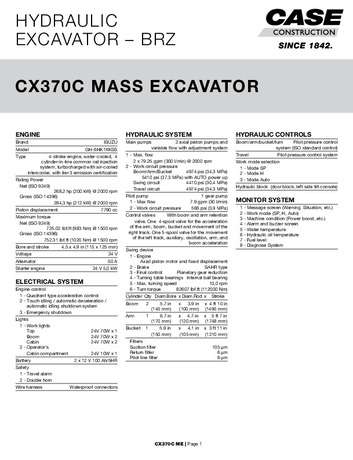

SPEC - CX370C ME
0.29MBNET POWER
268,2 hp (200 kW)
OPERATING WEIGHT
38.574 kg
Explore the Features
Specifications
Standard Equipment
- Oil-damped system with 4 mounts.
- ROPS and FOPS level 1 protection.
- Fabric seat with pneumatic suspension.
- 3’’ seat belt.
- Automatic air conditioning.
- AM/FM radio with Bluetooth and USB port.
- 7’’ control panel display with optional rear and right-side cameras.
- Joystick controls for hydraulic functions.
- Travel pedals with auxiliary manual control levers.
- Footrests.
- Safety lever that neutralizes hydraulic functions with a delay timer.
- Front windshield with upward opening and end-of-travel sensor.
- Tilting and sliding sunroof.
- Two-speed intermittent front windshield wiper with washer system.
- Sliding left-side window.External rearview mirror.
- Interior light.
- Cup holder, storage compartments, and phone holder.
- Dual master key.
- Turbocharged Isuzu Tier 3 / Mar-1 engine.
- Dial-type throttle control.
- Automatic engine deceleration.
- Electronic engine speed control.
- Auto-idle system.
- Cyclonic air pre-filter.
- Standard ISO pilot controls.
- Work mode selector: A, H, & SP.
- Auxiliary mode for attachments (hammers, shears, processors, etc.).
- Auto Power Up.
- Two variable-flow piston pumps, 2x 300 l/min.
- Automatic pump flow reduction.
- Cylinders with end-stroke cushioning and regenerative system.
- 6.000 mm mono boom.
- 2.21 m digging arm.
- Electronically managed swing brake.
- Swing ring in grease bath.
- 600 mm triple grouser shoes.
- Double track guides.
- Track length: 4.980 mm.
- Sealed and lubricated tracks.
- Hydrostatic travel drive with two-speed system.
- SAHR disc parking brakes.
Specifications
Optional Equipment
- Buckets of 2.1 m³ and 2.7 m³ for severe applications.
- Shoes: 700 mm, 800 mm.
- Full track guard protection.
- Pre-installation for single/double-directional hydraulic auxiliaries.
- Auxiliary lighting.
- Front guard protection.
- Upper protection (FOPS level 2).
- Seat with low-frequency mechanical suspension, coil springs, and dual-action hydraulic damper.
- Side-view camera.
- Rear-view camera.
- Rotating beacon.
- SiteWatch monitoring system (cellular/satellite telemetry).
- Advanced telemetry subscription for 1, 2, 3, 4, or 5 years.
- Fuel refueling pump.
