Skid Steer Loader SR175B
With 790 kg of operational load capacity, the CASE SR175B Skid Steer Loader is an excellent choice for working in small spaces or congested areas.
Designed to enhance your performance, productivity, and comfort, as well as reduce operational costs, with the CASE Skid Steer Loader you can do much more, whether day or night.
MAKE A QUOTE
Download Brochures
Share or download the technical brochure.
NET POWER
60 hp (44.7 kW)
OPERATING WEIGHT
2.842 kg
Specifications
Standard Equipment
- ROPS/FOPS cab with side grille
- Tilt-up ROPS/FOPS frame
- Rear window with emergency exit
- Instrument panels
- 51 mm (2”) retractable seatbelt
- Hand and foot throttle
- Alarm package
- Cab roof liner
- Sunroof
- Cup holder
- Power outlet
- Footrest
- Storage tray
- Low-effort ergonomic manual controls
- Padded safety bar with integrated armrest
- Loader control lock system
- Electric parking brake control
- Rubber floor mat for easy cleaning
- Radial loader arm design
- Mechanical coupler for attachments
- Loader lift arm support beam
- Perkins 404D-22T
- Integrated engine oil cooling system
- Fuel filter with water separator
- Dual-element air filter
- 120 A alternator
- 12 V, 925 CCA battery
- Glow plug
- Overlapping oil cooler and radiator
- Spark arrestor muffler
- Four-wheel hydrostatic drive
- Servo-assisted controls
- ASA #80HS drive chain
- SAHR disc parking brakes
- Auxiliary hydraulic system: 210 bar (3,046 psi) 72 l/min (19 gpm)
- Hydraulic circuit pedal lock
- ISO flat-face couplers mounted on loader arm
- Auxiliary function lockout override
- Loader function lockout system
- Loader lift lockout override
- 3-spool loader control valve
- Oil cooler for severe applications
- Loader arm float position
- Maintenance access hood with lock
- Centralized daily maintenance points
- Halogen lights (2 front, 2 side, 2 rear)
- Rear lights
- Remote oil drain
Specifications
Optional
- Deluxe fabric seat with suspension, heating, and lumbar support
- Vinyl seat with suspension
- 76 mm (3”) retractable seatbelt
- Interior mirror
- Bluetooth radio
- Air conditioning and heating
- Demolition door
- Electric auxiliary hydraulic system control
- Front glass door with windshield wiper and washer
- Sliding side windows
- Electric front auxiliary control
- Ride Control
- Hydraulic coupler for attachments
- Single-way hydraulic self-leveling
- Electro-hydraulic (EH) controls
- High Flow hydraulic system: 210 bar (3,046 psi) 109 l/min (28.7 gpm)
- Drainage lines for accessory oil
- Engine block heater
- Battery disconnect switch
- Two-speed drive
- Deluxe instrument panel
- Road traffic lights
- Rotating beacon
- Lifting hooks
- Custom paint
- Decals
- Factory-installed tires
- Buckets
- Bolt-on cutting edges for buckets
- 1.07 m and 1.22 m pallet forks
- Steel tracks
Gallery

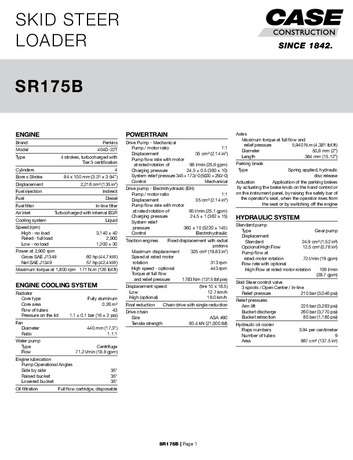

Technical Specifications
ENGINE | ||||||||||
Brand | ||||||||||
Model | ||||||||||
Type | ||||||||||
Cylinders | ||||||||||
Displacement | ||||||||||
Fuel injection | ||||||||||
Cooling system | ||||||||||
Maximum torque at 1,800 rpm | ||||||||||
ENGINE COOLING SYSTEM | ||||||||||
POWERTRAIN | ||||||||||
HYDRAULIC SYSTEM | ||||||||||
SERVICE CAPACITIES | ||||||||||
ELECTRIC SYSTEM | ||||||||||
