Skid Steer Loader SR200B
Whatever your job, CASE has a skid steer loader that can do it. With the CASE SR200B skid steer loader, you have an operational load capacity of 3.160 kg.
Offering all the strength to get the job done, it was designed to dig, transport, and load. All of this combined with comfort and low operational cost.
REQUEST A QUOTE
Download Brochures
Share or download the technical brochure.
NET POWER
74 hp (55 kW)
OPERATING WEIGHT
3.160 kg
Specifications
Standard Equipment
- ROPS/FOPS cab with side screen
- Tilting ROPS/FOPS structure
- Rear window with emergency exit
- Instrument panels
- 51 mm (2") retractable seatbelt
- Hand throttle and foot throttle
- Alarm package
- Cab roof liner
- Sunroof
- Cup holder
- Power outlet
- Footrests
- Storage tray
- Ergonomic low-effort manual controls
- Padded safety bar with integrated armrest
- Loader control lockout system
- Electric parking brake control
- Rubber floor mat for easy cleaning
- Radial lift arm design
- Mechanical attachment coupler
- Lift arm support beam
- FPT engine, Tier 3 / MAR-I certified
- Integrated engine oil cooling system
- Fuel filter with water separator
- Dual-element air filter
- 120 A alternator
- 12 V battery, 925 CCA
- Glow plug
- Overlapping oil cooler and radiator
- Maintenance-free belt
- Four-wheel hydrostatic drive
- Servo-assisted controls
- ASA #100HS drive chain
- SAHR disc parking brakes
- Auxiliary hydraulic system: 210 bar (3.046 psi), 85 l/min (22.5 gpm)
- Pedal lock for hydraulic circuit
- ISO flat-face couplers mounted on the loader arm
- Auxiliary function lockout override
- Loader function lockout system
- Lift arm lockout override
- 3-spool loader control valve
- Heavy-duty oil cooler for demanding applications
- Loader arm float position
- Lockable maintenance access hood
- Daily maintenance from a single point
- Halogen lights: 2 front, 2 side, 2 rear
- Rear lights
- Remote oil drain
Specifications
Optional
- Deluxe cloth seat with suspension, heating system, and lumbar support
- Vinyl seat with suspension
- 76 mm (3") retractable seatbelt
- Interior mirror
- Bluetooth radio
- Air conditioning and heating
- Demolition application door
- Electric control for auxiliary hydraulic system
- Front glass door with wiper and washer
- Sliding side windows
- Electric auxiliary front control
- Ride Control
- Hydraulic attachment coupler
- Single-direction hydraulic self-leveling
- Electro-hydraulic (EH) controls
- High-flow hydraulic system: 210 bar (3,046 psi), 116 l/min (30.7 gpm)
- Accessory case drain lines
- Engine block heater
- Battery disconnect switch
- Deluxe instrument panel
- Road traffic lights
- Rotating beacon
- Lifting hooks
- Custom paint
- Custom decals
- Factory-installed tires – see page 2
- Buckets – see page 3
- Bolt-on bucket cutting edges
- 1.07 m and 1.22 m pallet forks
- Steel tracks
- Additional counterweights

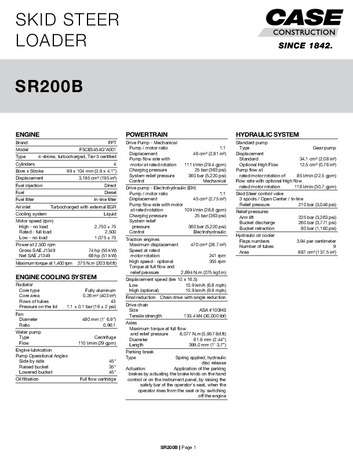

Technical Specifications
ENGINE | ||||||||||
Brand | ||||||||||
Model | ||||||||||
Type | ||||||||||
Cylinders | ||||||||||
Displacement | ||||||||||
Fuel injection | ||||||||||
Cooling system | ||||||||||
Maximum torque at 1,800 rpm | ||||||||||
ENGINE COOLING SYSTEM | ||||||||||
POWERTRAIN | ||||||||||
HYDRAULIC SYSTEM | ||||||||||
ELECTRIC SYSTEM | ||||||||||
SERVICE CAPACITIES | ||||||||||
