Skid Steer Loader SR220B
Whatever your job, CASE has a skid steer that can do it. With the CASE SR220B skid steer model, you have an operating load capacity of 1.088 kg at your disposal.
Offering all the power to get the job done, it was designed to dig, haul and load. All this combined with comfort and low operating cost.
MAKE A QUOTE

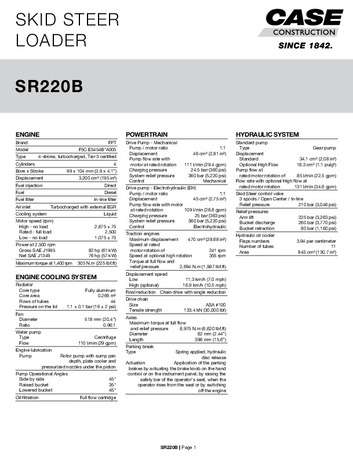

Download Brochures
Share or download the technical brochure.
NET POWER
74 hp (55 kW)
OPERATING WEIGHT
3.350 kg (7.400 lb)
Specifications
Standard Equipment
- Radial lift (SR) model designed for digging, prying, and pushing
- Provides more space, visibility, comfort, and control
- Sealed cab significantly reduces noise and dust levels
- 25% larger cabs are the most spacious in the industry
- The revolutionary ultra-thin wire mesh side panel design with increased glass surface provides 360-degree visibility
- CASE’s exclusive side lighting allows for greater working capability, day or night
- The Power Stance chassis allows you to lift and carry more material with a wheelbase up to 21% longer and a 30/70 front/rear weight distribution
- Ride control provides superior stability and operating speeds, regardless of site conditions
- Improved fuel efficiency combined with a new 16 to 25.5-gallon fuel tank allows CASE skid steer loaders to work all day without the need for refueling
- ROPS/FOPS cab with side screens
- Tilting ROPS/FOPS structure
- Rear window with emergency exit
- Instrument panels
- Retractable seat belt (2” / 51 mm)
- Hand and foot throttle
- Alarm package
- Cab ceiling liner
- Sunroof
- Cup holder
- Power outlet
- Footrest
- Storage tray
- Ergonomic low-effort hand controls
- Padded safety bar with integrated armrest
- Loader control lockout system
- Electric parking brake control
- Rubber floor mat for protection/easy cleaning
- Radial lift arm design
- Mechanical attachment coupler
- Loader lift arm support beam
- FPT 432T/M3 diesel
- Stacked oil cooler and radiator
- Glow plug
- Integrated engine oil cooling system
- Fuel filter with water separator
- Dual-element air filter
- 95 A alternator
- 12V 1000 CCA battery
- Four-wheel hydrostatic drive
- Servo-assisted controls
- ASA #100HS drive belt
- SAHR disc parking brakes
- Auxiliary hydraulic system: 210 bar (3,050 psi) – 90 l/min (23.8 gpm)
- Hydraulic circuit pedal lock
- ISO flat-face couplers mounted on the loader arm
- Auxiliary function override
- Loader operation lockout system
- Loader lift neutralizer
- 3-spool loader control valve
- Heavy-duty oil cooler
- Loader arm float position
- Lockable maintenance access hood
- Single-point daily maintenance
- Halogen lights: 2 front, 2 side, 2 rear
- Rear work lights
- Remote oil drain
Specifications
Optional
- Vinyl suspension seat
- Deluxe cloth suspension seat with heating and lumbar support
- Interior mirror
- Front electric auxiliary control
- Front glass door with windshield wiper and washer
- Sliding side windows
- Retractable 76 mm (3") seat belt
- Air conditioning and heating
- Radio
- Demolition door
- Ride Control
- Electro-hydraulic (EH) controls
- Hydraulic attachment coupler
- One-way hydraulic self-leveling (lift)
- High-Flow hydraulic system: 210 bar (3.050 psi) – 131 l/min (34.6 gpm)
- Auxiliary case drain line
- Coolant block heater
- Battery disconnect switch
- Two-speed drive
- Deluxe instrument panel
- Road traffic lights
- Beacon light
- Lifting hooks
- Special paint
- Decals
- Factory-installed tires – see page 2
- Buckets – see page 3
- Bolt-on cutting edges for buckets
- Pallet forks: 1.07 m (42") and 1.22 m (48")
Technical Specifications
ENGINE | ||||||||||
Brand | ||||||||||
Model | ||||||||||
Type | ||||||||||
Cylinders | ||||||||||
Displacement | ||||||||||
Fuel injection | ||||||||||
Cooling system | ||||||||||
Maximum torque at 1,800 rpm | ||||||||||
ENGINE COOLING SYSTEM | ||||||||||
POWERTRAIN | ||||||||||
HYDRAULIC SYSTEM | ||||||||||
SERVICE CAPACITIES | ||||||||||
ELECTRIC SYSTEM | ||||||||||
