Skid Steer Loader SR250B
For any activity, one specialty: heavy lifting. This is the mission of the CASE SR250B Skid Steer Loader, which has an operational load capacity of 3.490 kg. It is ideal for digging, lifting, and pushing, in addition to offering space, visibility, and comfort for the operator.
Economy is also part of the equation, as the fuel tank capacity allows it to work all day long without the need for refueling.
MAKE A QUOTE
Download Brochures
Share or download the technical brochure.
NET POWER
90 hp (67 kW)
OPERATING WEIGHT
3.490 kg (7.700 lb)
Specifications
Standard Equipment
- ROPS/FOPS cab with side mesh
- Tilt-up ROPS/FOPS structure
- Rear window with emergency exit
- Instrument panels
- 51 mm (2”) retractable seatbelt
- Manual and foot throttle
- Alarm package
- Cab roof lining
- Sunroof
- Cup holder
- Power outlet
- Footrest
- Storage tray
- Ergonomic low-effort manual controls
- Padded safety bar with integrated armrest
- Loader control lockout system
- Electric parking brake control
- Rubber floor mat for easy cleaning
- Radial loader arm design
- Mechanical attachment coupler
- Loader lift arm support beam
- FPT engine certified for Tier 3 / MAR-I
- Integrated engine oil cooling system
- Fuel filter with water separator
- Dual-element air filter
- 120 A alternator
- 12 V 925 CCA battery
- Glow plug
- Overlapping oil cooler and radiator
- Four-wheel hydrostatic drive
- Servo-assisted controls
- ASA #100HS drive chain
- SAHR disc parking brake
- Auxiliary hydraulic system: 210 bar (3.046 psi), 85 l/min (22.5 gpm)
- Hydraulic circuit pedal lock
- ISO flat connectors mounted on loader arm
- Auxiliary function lockout
- Loader function and lift lockout
- 3-spool loader control valve
- Oil cooler for heavy-duty applications
- Loader arm float position
- Lockable access hood for maintenance
- Single-point daily maintenance
- Halogen work lights: 2 front, 2 side, 2 rear
- Rear lights
- Remote oil drain
- Two-speed drive system
- Heavy-duty rear door
Specifications
Optional Equipment
- Deluxe cloth seat with suspension, heating system, and lumbar support
- Vinyl seat with suspension
- 76 mm (3”) retractable seatbelt
- Interior mirror
- Bluetooth radio
- Air conditioning and heating
- Door for demolition applications
- Electric control for auxiliary hydraulic system
- Front glass door with windshield wiper and washer
- Sliding side windows
- Electric auxiliary front control
- Ride Control system
- Hydraulic attachment coupler
- Single-way hydraulic self-leveling
- Electro-hydraulic (EH) controls
- Engine block heater
- Battery disconnect switch
- High-flow hydraulic system: 210 bar (3.046 psi), 142.5 l/min (37.6 gpm)
- Accessory case drain plumbing
- Two-speed drive system
- Deluxe instrument panel
- Road traffic lights
- Rotating beacon
- Lifting hooks
- Special paint
- Custom decals
- Factory-installed tires
- Buckets
- Bolt-on cutting edges for buckets
- Pallet forks: 1.07 m (42”) and 1.22 m (48”)
Gallery

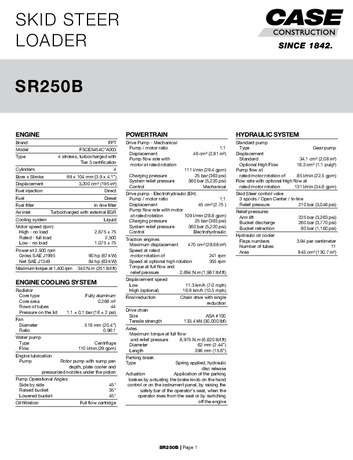

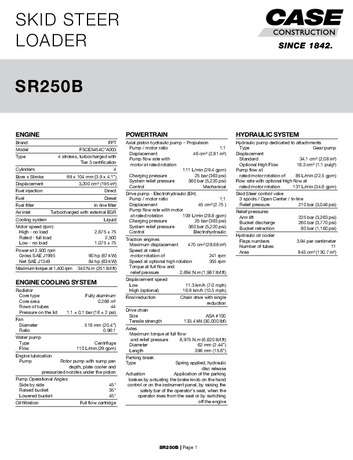

Technical Specifications
ENGINE | ||||||||||
Brand | ||||||||||
Model | ||||||||||
Type | ||||||||||
Cylinders | ||||||||||
Displacement | ||||||||||
Fuel injection | ||||||||||
Cooling system | ||||||||||
Maximum torque at 1,800 rpm | ||||||||||
ENGINE COOLING SYSTEM | ||||||||||
POWERTRAIN | ||||||||||
HYDRAULIC SYSTEM | ||||||||||
SERVICE CAPACITIES | ||||||||||
ELECTRIC SYSTEM | ||||||||||
