Skid Steer Loader SV300B
The robust CASE SV300B Skid Steer Loader with vertical lift (SV) is perfect for lifting, loading, and transporting materials. With 1.361 kg of operational load capacity, it is the most powerful in the line.
The CASE SV300B Skid Steer Loader in the field is synonymous with performance, productivity, comfort, and economy.
MAKE A QUOTE

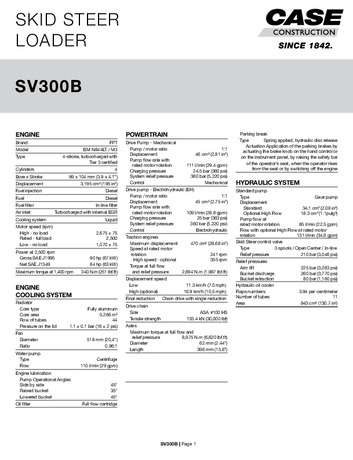

Download Brochures
Share or download the technical brochure.
NET POWER
90 hp (67 kW)
OPERATING WEIGHT
3.765 kg
Specifications
Standard Equipment
- ROPS/FOPS cab with side mesh
- Tiltable ROPS/FOPS structure
- Rear window with emergency exit
- Instrument panels
- Vinyl seat with suspension
- 51 mm (2”) retractable seat belt
- Manual and foot throttle
- Alarm package
- Cab roof lining
- Sunroof
- Cup holder
- Power outlet
- Footrest
- Storage tray
- Low-effort ergonomic manual controls
- Padded safety bar with integrated armrest
- Loader control locking system
- Electric parking brake control
- Rubber floor mat for easy cleaning
- Vertical lift arm design
- Mechanical attachment coupler
- Loader lift arm support beam
- FPT engine with Tier 3 / MAR-I certification
- Integrated engine oil cooling system
- Fuel filter with water separator
- Dual-element air filter
- 120 A alternator
- 12 V 925 CCA battery
- Glow plug
- Overlapping oil cooler and radiator
- Maintenance-free belt
- Four-wheel hydrostatic drive
- Servo-assisted controls
- ASA #100HS drive chain
- SAHR disc parking brakes
- Auxiliary hydraulic system: 210 bar (3.046 psi), 85 l/min (22.5 gpm)
- Pedal lock for hydraulic circuit
- ISO flat-face connectors mounted on the loader arm
- Auxiliary function lockout
- Loader function lockout system
- Loader lift lockout system
- 3-spool loader control valve
- Oil cooler for severe applications
- Loader arm float position
- Maintenance access hood with lock
- Single-point daily maintenance
- Halogen work lights: 2 front, 2 side, 2 rear
- Rear lights
- Remote oil drain
Specifications
Optional Equipment
- Deluxe fabric seat with suspension, heating system, and lumbar support
- 76 mm (3”) retractable seat belt
- Interior rearview mirror
- Bluetooth radio
- Air conditioning and heating
- Demolition application door
- Electric control for auxiliary hydraulic system
- Front glass door with wiper and washer
- Sliding side windows
- Electric front auxiliary control
- Ride Control
- Hydraulic attachment coupler
- Single-direction hydraulic self-leveling
- Electro-hydraulic (EH) controls
- High-flow hydraulic system: 210 bar (3.046 psi), 142.5 l/min (37.6 gpm)
- Accessory drain tubing
- Engine block heater
- Battery disconnect switch
- Two-speed drive system
- Deluxe instrument panel
- Road traffic lights
- Rotating beacon
- Lifting hooks
- Custom paint
- Decals
- Factory-installed tires
- Buckets
- Bolt-on cutting edges for buckets
- Pallet forks: 1.07 m and 1.22 m
Technical Specifications
ENGINE | ||||||||||
Brand | ||||||||||
Model | ||||||||||
Type | ||||||||||
Cylinders | ||||||||||
Displacement | ||||||||||
Fuel injection | ||||||||||
Cooling system | ||||||||||
Maximum torque at 1,800 rpm | ||||||||||
ENGINE COOLING SYSTEM | ||||||||||
POWERTRAIN | ||||||||||
HYDRAULIC SYSTEM | ||||||||||
SERVICE CAPACITIES | ||||||||||
ELECTRIC SYSTEM | ||||||||||
