Wheel Loaders 821E

Designed to face any challenge, the 821E Wheel Loader offers great stability, superior traction, power to break/ push, lifting capacity, and quiet operation.

Its technological innovations make it the most productive in the market, as well as offering the comfort, space, and visibility the operator needs. This wheel loader also has versions for rock and granite extraction, with special buckets and counterweights for heavy-duty services.

MAKE A QUOTE

TIPPING LOAD

12.290 kg

BUCKET VOLUME

From 1.9 to 5 m³

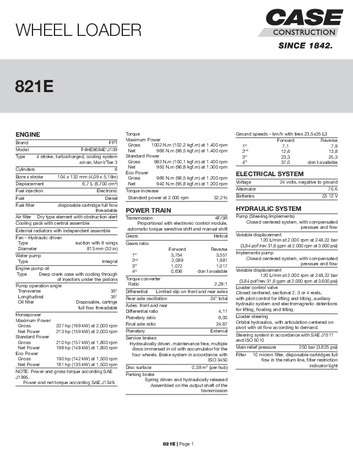

Specifications

Standard Equipment

ROPS/FOPS cabin with air conditioning and heater. Complies with ISO 3471, 3449, SAE 1040C, J231, OSHA standards
Radio
Key start
Articulated hydraulic steering with adjustable column
Suspension seat, fully adjustable
Accelerator pedal
Single control lever with wrist support
Cup holder
Coat hanger
Interior rearview mirror
Retractable 51mm (2”) seatbelt
Storage tray behind the seat
Air conditioning
Single pedal brake
F/N/R gear shift button
External rearview mirrors
Refrigerated box
Pressurized air filtration
Defroster
Side window with full/partial opening
Roof light
Front and rear windshield wipers
Turn signals
Front and rear windshield washers
Glove box with key
Comfort kit (cigarette lighter, storage compartment)

FPT Mar-1/Tier 3 certification
Selectable working modes:
Maximum Power
Automatic Power
Standard Power
Economic Power
Turbocharger
Air intake cooling
Automatic alternator belt tensioner
Engine oil cooling
Fuel filter with water separator
Air filter with two elements
65 A alternator
(2) 700 CCA 12V batteries
Quiet without spark arrestor
Central mounting cooling module
Common Rail electronic fuel injection

Z-kinematics arm
Single control for lift and tilt
Float with positive retention
Automatic return to digging
Automatic height control
Automatic return to travel
Transmission disconnect on brake pedal
Bucket position indicator

4-wheel drive
Selectable transmission with 4F/3R Automatic/manual
Programmable Electronic Control Module
Proportional gear shifting controlled by computer with programmable gear selection
Onboard diagnostics
Single lever for electronic gear control
F/N/R gear button on loader control lever
Gear reduction button
Torque converter
External planetary axles
Differentials with limited slip
Transmission oil cooler
Transmission disconnect with brake pedal
Oil bath hydraulic brake discs
Spring-applied, hydraulically released parking brake
Limp-Home mode
Cardan shaft with permanent lubrication

Loader control valve with single lever and 2 spools
Low-effort steering
Hydraulic fan with reversal
(8) diagnostic quick couplings

Electric hood lift
Front and rear fenders
Headlights: (2) front headlights (high/low), (2) front working lights, (2) rear brake and reverse lights, (2) rear working lights
Front and rear turn signal/emergency lights
Standard counterweight
Tow pin
Articulation lock bar
Lift arm lock bar
Support and tie-down points - front and rear
Reverse alarm
Remote drainage points

Specifications

Optional Equipment

Seat with pneumatic suspension covered in fabric
Right side steps and platform
Rotating light
Second brake pedal

Cold climate kit

Sugarcane Version:
Cyclonic prefilter at the engine and air conditioning intake for better system efficiency and to prevent clogging
Bucket sized for handling sugarcane bagasse
Chassis with openings to prevent material buildup
Fire extinguisher
Granite Extraction (handling of blocks):
Special bucket and counterweight for heavy-duty work
Rock Extraction:
HD bucket, counterweight, and tires for heavy-duty work
