Skid Steer Loader SR150B
CASE Skid Steer Loaders have always been recognized for their productivity, low operational cost, and comfort. The SR150B model has the strength to do the job, offering an operational load capacity of 2.430 kg.
MAKE A QUOTE
Download Brochures
Share or download the technical brochure.
NET POWER
60 hp (44.7 kW)
OPERATING WEIGHT
2.430 kg
Specifications
Standard Equipment
- ROPS/FOPS cab with side mesh
- Control lockout system
- Tilting ROPS/FOPS structure
- Rear window with emergency exit
- Instrument panels
- 2” (51 mm) retractable seatbelt
- Hand throttle and foot pedal
- Alarm package
- Cab roof lining
- Sunroof
- Cup holder
- Power outlet
- Footrests
- Storage tray
- Low-effort ergonomic manual controls
- Padded safety bar with integrated armrest
- Loader control lockout system
- Electric parking brake control
- Rubber floor mat for easy cleaning
- Radial loader arm design
- Mechanical attachment coupler
- Loader lift arm support beam
- Perkins 404D-22T
- Integrated engine oil cooling system
- Fuel filter with water separator
- Dual-element air filter
- 120 A alternator
- 12 V, 925 CCA battery
- Glow plug
- Overlapping oil cooler and radiator
- Spark arrestor muffler
- Four-wheel hydrostatic drive
- Servo-assisted controls
- ASA #80HS drive chain
- SAHR disc parking brakes
- Auxiliary 207 bar (3,000 psi), 59 l/min (15.6 gpm) hydraulic system
- Hydraulic circuit pedal lockout
- Loader arm-mounted ISO flat face connectors
- Auxiliary operation lockout neutralizer
- Loader operation lockout system
- Loader lifting lockout neutralizer
- 3-spool loader control valve
- Oil heat exchanger for severe applications
- Loader arm floating position
- Maintenance access hood with lock
- Centralized daily maintenance points
- Halogen headlights (2 front, 2 side, 2 rear)
- Rear lights
- Wiring harness for additional options
- Remote oil drain
Specifications
Optional
- Deluxe fabric seat with suspension, heating, and lumbar support
- Vinyl seat with suspension
- 3” (76 mm) retractable seatbelt
- Internal mirror
- Bluetooth radio
- Air conditioning and heating
- Door for demolition applications
- Front glass door with windshield wiper and washer
- Sliding side windows
- Ride Control
- Drain lines for attachment oil reservoirs
- Single-direction hydraulic self-leveling
- Hydraulic attachment coupler
- Engine block heater
- Deluxe instrument panel
- Road traffic lights
- Rotating beacon
- Lifting hooks
- Special paint and decals
- Factory-installed tires
- Buckets of various sizes
- Bolt-on bucket cutting edges
- 1.07 m and 1.22 m pallet forks
- Battery disconnect switch

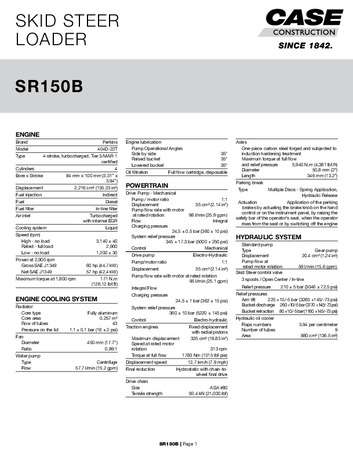

Technical Specifications
ENGINE | ||||||||||
Brand | ||||||||||
Model | ||||||||||
Type | ||||||||||
Cylinders | ||||||||||
Displacement | ||||||||||
Fuel injection | ||||||||||
Cooling system | ||||||||||
Maximum torque at 1,800 rpm | ||||||||||
ENGINE COOLING SYSTEM | ||||||||||
POWERTRAIN | ||||||||||
HYDRAULIC SYSTEM | ||||||||||
SERVICE CAPACITIES | ||||||||||
ELECTRIC SYSTEM | ||||||||||
