CX15EV

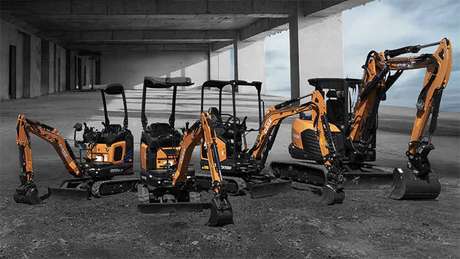

The CX15EV electric excavator is part of the CASE Construction Equipment D-Series Mini Excavators. This electric mini digger can handle an operating weight of 1420 kg and uses an Internal Permanent Magnet engine that can power up to 11kW. This battery powered excavator is one of the two fully electric excavators in the entire range, granting zero emissions and 100% of the performance like the equivalent diesel models along with autonomy and rapid recharging time!
DOWNLOADS
Download Brochures
Share or download a brochure for additional information.
CX15EV - Specsheet
1.61 MBWeight
1420 kg - with Roll-bar
Digging Depth
2045 mm
Explore the Features
SPECIFICATIONS
Standard Equipment
- Tiltable Roll-bar (ROPS/TOPS)
- Travel alarm
- Vinyl seat with Mechanical suspension (canopy)
- Standard arm
- Boom Lift cylinder and dozer blade cylinder protection
- Standard counterweight
- Servo-assisted hydraulic joysticks with Electro-Hydraulic proportional controls
- Electro-Hydraulic proportional Swing control
- 1st Auxiliary (AUX1) circuit with Electro- Hydraulic proportional control
- 2 speed travel with Automatic Shift Down (from 2nd to 1st gear if more traction is required) and Shift-up
- Rubber tracks
- Standard Dozer Blade
- Extendable undercarriage
- Operator manual
- Documents box and Tool kit for maintenance
- Ignition key, which opens every machine lock
- Standard LED working lights (boom)
- Helical Gear Pump
- Low Noise Helical gear pump
- Bio Hydraulic oil and Lubricants
- Electronic Display and controls
- 3 pre-set Control modes
- Electronic flow setting for every modevement and auxiliary circuits
- On-board battery charger (220 VAC)
- CASE Sitewatch and SiteConnect
SPECIFICATIONS
Optional Equipment
- Roll-bar plastic cover (FOPS Level 1)
- Long arm
- 2nd Auxiliary (AUX2) circuit with Electro-Hydraulic proportional control
- Extra LED working lights (roof)
- Rotating beacon
- Portable Fast-Charger (380 VAC)
- Mechanical quick couplers
- Buckets
Compatible Attachments
Your CASE equipment is the platform - your attachments make the difference in how much work you win and how profitable your machine is.
SPECIFICATIONS
Compare Specifications
ENGINE | ||||||||||||||||||||
Type | ||||||||||||||||||||
Max. Power (rpm) kW / hp | ||||||||||||||||||||
Displacement (cm³) | ||||||||||||||||||||
Number of cylinders (n°) | ||||||||||||||||||||
Cooling | ||||||||||||||||||||
Consumption (l/h) | ||||||||||||||||||||
Alternator V (Ah) | ||||||||||||||||||||
Battery V (Ah) | ||||||||||||||||||||
ELECTRICAL MOTOR | ||||||||||||||||||||
SUPPLY | ||||||||||||||||||||
CHARGING TIMES | ||||||||||||||||||||
OPERATING MODES | ||||||||||||||||||||
WEIGHT | ||||||||||||||||||||
KEY DIMENSIONS | ||||||||||||||||||||
HYDRAULIC SYSTEM | ||||||||||||||||||||
SPEED | ||||||||||||||||||||
FLUIDS CAPACITIES | ||||||||||||||||||||
* with rubber tracks
** IPM = Internal Permanent Magnets
