Motor Graders

Motor Graders Australia


  • Operating Weight 18710 kg
  • Engine Power 234 hp / 175 kW

885B Motor Grader

Whether you are looking for increased productivity and fuel efficiency or superior comfort and visibility, the CASE 885B motor grader provides the strength and durability you can count on. With all daily maintenance checks located at ground level, the 800 series motor graders help save time and money. Front articulation allows for a tight turning radius while the A-frame drawbar provides outstanding stability; allowing you to increase efficiency on jobs of every size.

The AWD option makes these models more versatile for any application especially heavy blading that involves cutting, moving and mixing materials.

The perfect equipment for:
  • Infrastructure
  • Quarrying
  • Agriculture
  • Urban
  • Recycling
Motor Graders - 885B DHP
Motor Graders - 885B DHP
File size 827.71 KB
Motor Graders - 885B AWD
Motor Graders - 885B AWD
File size 848.58 KB
Motor Graders B- Series
Motor Graders B- Series
File size 7.96 Mb



Get the flexibility of both manual and automatic shifting to match the job conditions at hand with our powershift direct-drive transmission. Increased power, stability and turning performance to the moldboard are delivered through the A-frame and high-strength circle. For unmatched ground-breaking power, our rear-ripper accommodates up to five teeth and front scarifier accommodates 11 teeth.

Fuel Efficiency

Move even more dirt with less horsepower and better fuel economy through a multi-radius involuted moldboard design.

Comfort and Visibility

Superior all-around visibility and a clear view of the moldboard are achieved with floor-to-ceiling cab glass. Operator comfort is provided by ergonomic, low-effort control levers positioned within easy reach.

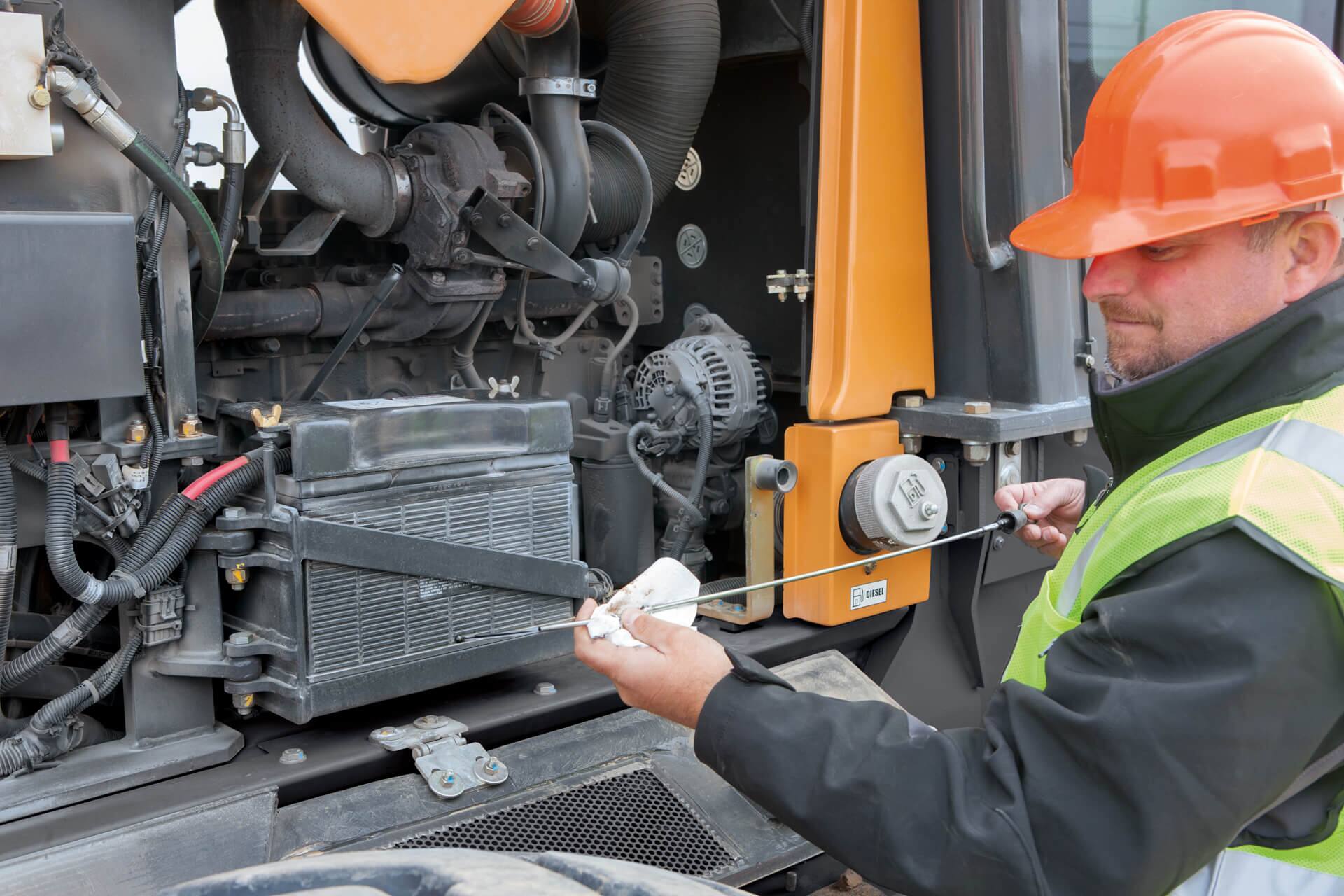

Get easy access to the engine and perform daily maintenance checkpoints with the friendly flip-up hood. Reaching the fill port or grease zerks is simple with ground-level access including our exclusive fuel fill with lockable cap.


Standard Equipment

Open Close


  • ROPS/FOPS cab – SAE J231, ISO 3449
  • Adjustable operator’s console
  • Adjustable cloth suspension seat w/ 3 in (76 mm) retractable seat belt
  • Safety glass, Dome light
  • Inside rearview mirror
  • Outside rearview mirrors
  • Cup holder
  • Storage tray
  • 12-volt outlet
  • Radio ready – 12 Volt
  • Electrical master switch – automatic
  • Heater/defroster/pressurizer
  • Air conditioner
  • Sound suppression
  • Cab doors – left/right
  • Steps – left/right
  • Steering wheel
  • Windshield wiper – front
  • Windshield washer – front


  • FPT F4HE9684L turbocharged diesel
  • Tier 3 certified
  • Temperature controlled cooling fan
  • Charge air cooler
  • Air intake grid heater
  • Common rail electronic fuel injection
  • Hydraulic driven cooling fan
  • Auto idle


  • Hydraulic differential lock


  • Closed center, load sensing hydraulic system
  • Controls for all functions
  • 9 section control valve
  • Hydraulic moldboard side shift and pitch
  • 5-position saddle
  • 14 ft x 23.6 in (4267 x 600 mm) moldboard
  • 8 hydraulic diagnostic quick couplers


  • 14.0 x 24 – 12 PR


  • (2) Heavy-duty batteries – 1010 CCA
  • Electronic Systems Monitor
  • Horn
  • Alternator – 90 amp
  • Backup alarm
  • Headlights
  • (2) Turn signals front
  • (2) Tail lights with turn signals, brake lights
  • Flood lights – cab mounted


  • CASE SiteWatch™ Telematics – includes hardware and a 3-yr Advanced data subscription


  • Analog displays/Gauges: Fuel level, Engine coolant temperature, Transmission oil temperature, Hydraulic oil temperature

  • Monitor Functions: Hour meter, Engine speed, Travel speed, Current gear selection, FNR indication, Clock, Trip computer, Fuel consumption, Fuel level percentage, Oil pressure, Coolant temperature, Engine oil temperature, Transmission oil temperature, Hydraulic oil temperature, Turbocharger air temperature, Differential lock indicator, Gear selection indicator, Engine diagnostics, Transmission diagnostics, System voltage, Error reporting, Warning prompts

  • Indicator warning lamps: Main warning, Parking brake, Low brake pressure, High beams, Turn signals, Hazard lights, Low fuel

Optional Equipment

Open Close


  • 12 ft x 22 in (3658 x 559 mm), involute curve
  • 13 ft x 23.6 in (4267 x 600 mm), involute curve
  • Extensions – 2 ft (610 mm)
  • Front Float Control
  • Moldboard Float Control
  • Lift cylinder/side shift accumulators
  • Lift cylinder accumulators


  • High profile ROPS/FOPS cab
  • Front windows – openable
  • Lower front wiper/washers
  • Rear windshield washer
  • Air suspension seat
  • Radio, AM/FM with CD player
  • Sunshade


  • 14.0 x 24-12 PR
  • 14.0 x R24 XGLA
  • 14.0 x R24 Snoplus
  • 16.0 x 24-12 PR
  • 17.5 x 25-12 PR
  • 17.5 x 25-16 PR
  • 17.5 x R25 XTLA
  • 17.5 x R25 Snoplus
  • 20.5 x 25-12 PR


  • (2) Front mounted working lights
  • (2) Floodlights at moldboard
  • (2) Floodlights at articulation
  • Snow wing lighting package


  • Limited slip differential


  • Bidirectional engine cooling fan
  • Cold weather package
  • Fire extinguisher
  • Strobe light
  • Tool box – without tools
  • Deluxe tool box – with tools
  • Tire inflator kit
  • Spare wheel
  • Spare wheel support
  • Slow moving vehicle sign
  • Rear pull hook


  • Front pull hook
  • Front counterweight
  • Front dozer blade
  • Front scarifier
  • Front push plate
  • Front support and lift cylinder
  • Rear ripper


Open Close

Base & Extended Warranty Coverage

CASE ProCare applicable on select new heavy machine orders.

See your CASE dealer for model availability and timing.
