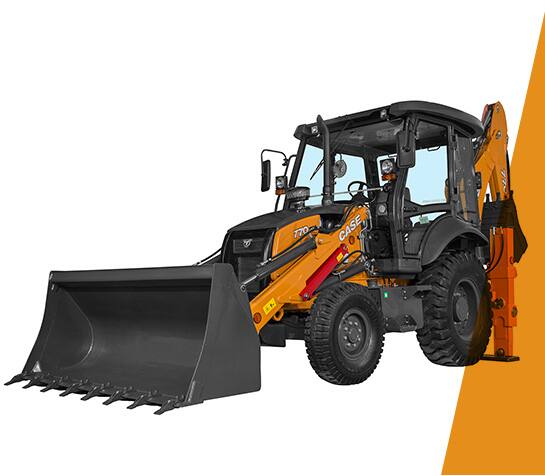

EX Series Backhoe Loaders

A LEGACY OF HIGH PERFORMANCE

• 180 year legacy of delivering breakthrough technology
• CEV Stage IV H4C electronic engine
• Better fuel eficiency with working modes & internal EGR technology
• Robust structure and hassle-free maintenance

COMFORTABLE OPERATOR STATION

• Spacious cabin with near 360° visibility for higher productivity
• Electronic throttle knob, 12V power socket, electrical side shift lock
• Large split buddy seat with lockable storage space, can now easily seat 3 helpers

ENHANCED SAFETY

• Audio visual warning system with up to 25 warning signals
• Engine protection shutdown for low downtime & low repair costs
• New cutoff switch in secured & dust free battery compartment

CASE DNA STYLED BACKHOE

• Styled boom for better reach on ground as well as on high body trucks
• With exible dipper options (14ft & 15ft) get best-in-class dig depth
• Better transport height & work visibility

LOADER PRODUCTIVITY

• Improved FNR location supports fast directional change, improving maneuverability & productivity
• Improved fill factor with spill proof bucket
• More than 35 attachment options for added versatility

BETTER RELIABILITY

• Reinforced robotically welded structures, sturdy axle, pins & bushes
• Proven transmission & high pressure common rail system
• Protected hoses for less breakdown and high reliability

EXCELLENT DESIGN

• Sloping & lockable engine hood for better worksite visibility
• Easy accessibility to all major components means lower maintenance time
• Secured engine compartment with lockable hood

BACKHOE PRODUCTIVITY WITH VERSATILITY

• With new Variable Displacement Pump*, optimum cycle time and high productivity
• Standard lifting hook for material handling like pipe laying, towing etc.
• 2 inch increase in swing frame height (ground clearance) for better maneuverability & loader productivity
• More than 25 attachment options for added versatility
• Bucket options from 0.08 to 0.30 m³

STRAIGHT LOADER ARM

• Offers better work visibility, tipping & loading height
• Ease of serviceability with lesser pins, bushes & thereby less daily maintenance time

CONNECTED MACHINE

• CASE “SiteWatch” Telematics as standard offering
• Fleet Management - Enhanced productivity by efficient resource allocation
• Asset Tracking & Recovery - Improved Safety
• Maintenance & Downtime reduction - Enhanced Customer service
• Data Driven decision making - Improved profitability

IMPROVED FUEL EFFICIENCY

• Up to 14% better fuel efficiency with the advanced hydraulic system-load sensing Variable Displacement Pump*
• New ECO Mode, Auto Idle and Auto Shutdown features ensure fuel savings up to 20%*

LOADER BUCKET OPTIONS

• 1.0m³BDB (Bottom Dump Bucket)
• 1.1m³ HDB (4m High Dump Bucket)

With 770EX Plus version*
