DV23CE Combi Roller
The beauty of the CASE DV23CE is that it takes the best of its double drum counterpart – including its narrow drum width, high curb clearance, easy transport, go-anywhere size – and combines it with rear kneading pneumatic tires. They provide a higher quality of compaction with less voids, along with the versatility to tackle granular and asphalt applications. You still get standard offset adjustability, double-filtration water system and excellent visibility. Not to mention, enhanced controls that make operation intuitive and easy.
Horsepower
33.5 hp | 25 kW
Operating Weight
4,600 lb | 2 085 kg
EXPLORE THE FEATURES
BROCHURE & SPECS

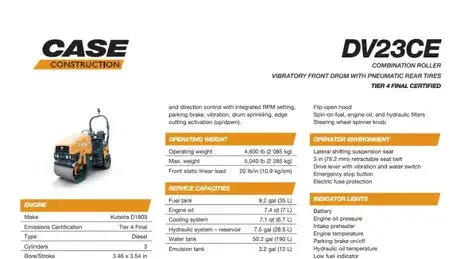

DV23CE Small Combination Roller Specifications
0.33MBSPECIFICATIONS
STANDARD & OPTIONAL EQUIPMENT
Explore standard equipment, optional equipment and warranty information for the DV23CE Small Combination Roller.
SPECIFICATIONS
STANDARD EQUIPMENT
OTHER
- Foldable ROPS
- Articulated chassis
OPERATOR ENVIRONMENT
- Lateral moving suspension seat w/ foldable arms
WATER SYSTEM
- Pressurized water system
- 2-stage water filtration
- Water system drains
- 50.2 gal (190 L) Polyethylene water tank
VIBRATION SYSTEM
- Dual frequency vibration
- Front drum vibration control modes
- Auto vibration stop in neutral
OPTIONAL EQUIPMENT
OTHER
- Tiltable drum scraper
- Infrared thermometer
- Edge cutter
- Traction assist
- ACE Force Intelligent compaction
WARRANTY
BASE & EXTENDED WARRANTY COVERAGE
- 1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty
- 2-Year/2,000-Hour Extended Limited Engine Warranty
PURCHASED PROTECTION
- Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to six-years / 7,500 hours on CASE Compaction Equipment.
Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The Case Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine Case service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
