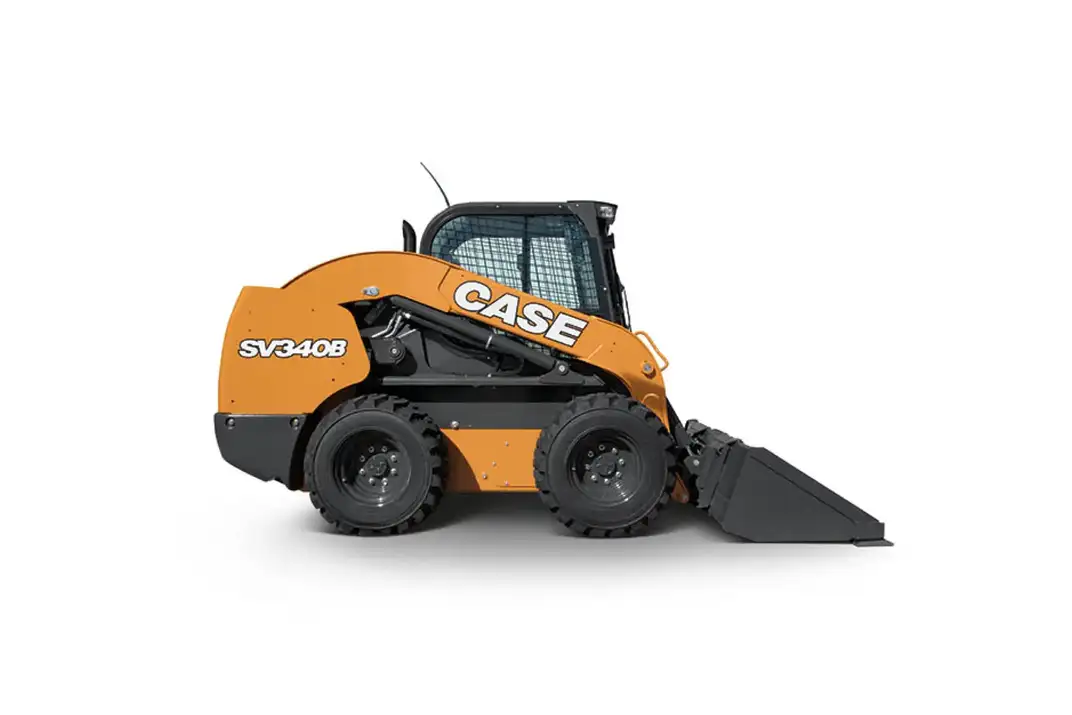

SV340B Skid Steer Loader

Here’s the biggest beast in the yard. It’s the CASE SV340B, the largest, most powerful skid steer in our lineup. With 90 hp, 3,400 lb. rated operating capacity and powerful auxiliary hydraulics, it’s a job-munching machine, capable of moving earth quickly, handling heavy palletized material and running robust attachments like stump grinders and cold planers. It also features one of the industry’s widest cabs, providing comfort along with superior visibility to work areas. It’s got intuitive joystick controls. And with a helpful 8-in. LCD screen with machine controls and vitals, it puts the pro in productivity.

Horsepower

90 hp | 67 kW

Rated Operating Capacity

3,400 lb | 1 545 kg

BROCHURE & SPECS

SV340B Skid Steer Loader Specifications

0.56MB

Skid Steer Loader B Series Brochure

8.32MB

SPECIFICATIONS

STANDARD & OPTIONAL EQUIPMENT

Explore standard equipment, optional equipment and warranty information for the SV340B Skid Steer Loader.

VIEW

SPECIFICATIONS

STANDARD EQUIPMENT

OPERATOR ENVIRONMENT

ROPS/FOPS Level 1 canopy w/ side screens
Rear window w/ emergency escape
Deluxe cloth, air suspension seat, w/ 2 in (51 mm) retractable 3 point lap seat belt, w/ heater and lumbar support
Rearview mirror

HYDRAULICS

Auxiliary hydraulics
- @ 3,050 psi (210 bar) – 24.2 gpm (91.5 L/min)

LOADER

Heavy duty hydraulic attachment coupler
Vertical lift geometry

OTHER STANDARD FEATURES

LED lights – 2 front, 2 side, 2 rear flood
Block heater

TELEMATICS

CASE SiteWatch™ Telematics – includes hardware and a 5-yr data subscription
SiteConnect Module providing remote diagnostics capability

OPTIONAL EQUIPMENT

OPERATOR ENVIRONMENT

AM/FM Bluetooth radio with 2 speakers
8 in Color LCD Display
Economy Mode (auto idle shutdown)
Auto Engine Protection Shutdown
Electro-hydraulic controls
- For drive/steering, loader functions
- Switchable between H and ISO patterns
- Adjustable sensitivity of controls
Air ride seat
Ignition Timeout
Machine Settings User Access Levels
Operator Security Codes

HYDRAULICS

High-flow auxiliary hydraulics – combined:
- @ 3,450 psi (238 bar) – 38.7 gpm (146.5 L/min)
Enhanced High-Flow auxiliary hydraulics – EHF:
- @ 4,000 psi (276 bar) – 35.0 gpm (132.5 L/min)
Hydraulic one-way self-leveling

LOADER

Hydraulic attachment coupler

DRIVETRAIN

Creep Speed Mode (on EH machines only)

FACTORY SUPPLIED ATTACHMENTS

Rotating beacon

SERVICE PARTS

Second auxiliary hydraulics
Add-on counterweights
Single Point Lift Hook
Aspirator

WARRANTY

BASE & EXTENDED WARRANTY COVERAGE

1-Year/Unlimited-Hour Full-Coverage Base Warranty
2-Year/2,000-Hour Full Coverage Base Limited Warranty
2-Year/2,000-Hour Extended Limited Engine Warranty
Engine Warranty - Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump.

PURCHASED PROTECTION

Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to three-years / 5,000 hours on CASE Skid Steer Loader models.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
