TL100 Mini Track Loader
Here’s proof that powerful things come in small packages. Introducing the CASE TL100 mini track loader. This compact, ride-behind work monster gives you the capabilities to easily crush more jobs, meaning more ways to grow your business. For starters, it comes with either a 42 in. wide track for max stability or a 36 in. narrow track, ideal for squeezing through backyard gates and doorways. It boasts a rated operating capacity of 1,000 lbs., and you can put that muscle to work in a ton of ways. With over 40 different attachment options, matched to Common Industry Interface (CII) connectors and standard auxiliary hydraulics and an optional 14-pin connector, you can be a jack of all jobs, from loading, tilling and digging to sweeping, stump grinding and snow blowing. The pilot joystick control makes it smooth to operate. And it’s all backed by CASE, so everything about it is heavy-duty, including our commitment to you.
Horsepower
24 hp | 18.0 kW
Wide Track Rated Operating Capacity (@35% of Tipping Load)
1,102 lb | 500 kg

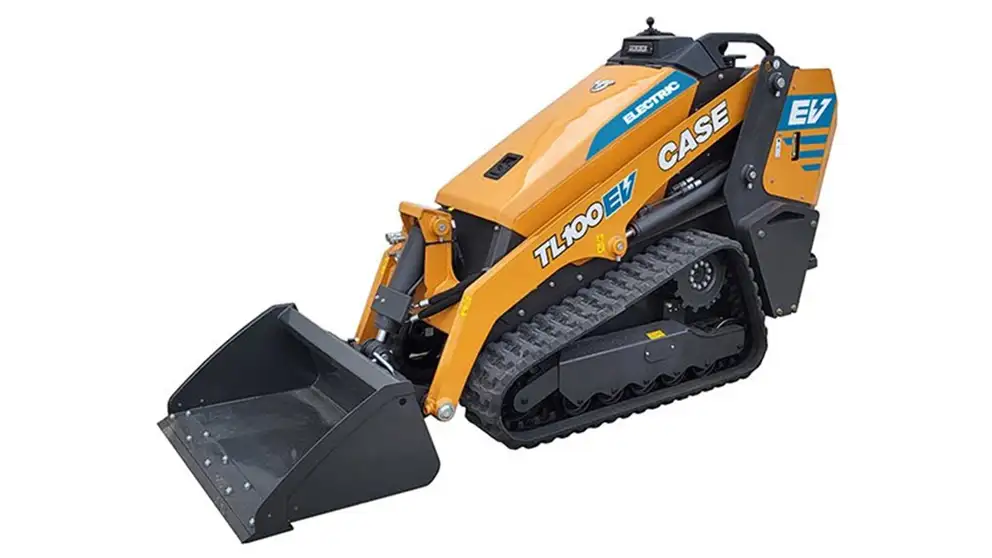

CASE TL100EV ELECTRIC MINI TRACK LOADER
The reliability of a mini track loader and the ability to work anywhere—that’s the secret to the CASE TL100EV. Powered by a 102V battery with an onboard charger, this electric mini track loader delivers 1,000 lbs. of rated operating capacity while opening up new jobsite opportunities: zero emissions and quiet operation let you comfortably handle indoor demos, low-noise environments and tight spaces without worry. A super-compact narrow track option helps you squeeze through 36-in. doors and gates without hesitation, while a radial linkage loader arm improves digging performance and extends service life. All that and a 7 ft. 2 in. hinge pin height clears most dumpsters and trailers with room to spare. A Common Industry Interface (CII) coupler and standard auxiliary hydraulics mean 40+ attachments are instantly within reach, while user-adjustable electro-hydraulic joystick controls and thumbwheel auxiliary hydraulics keep operators in full command, no matter the task.
Battery Capacity: 21.2 kWh
Operating Weight
Narrow Track: 3,886 lb | 1,862 kg
Wide Track: 4,133 lb | 1,875 kg
TAKE A CLOSER LOOK
WALKAROUND
Take a tour of the TL100 and get a good look at the features and technology that makes it the all-around, highly productive, easy-to-operate workhorse that can help you grow your business.
SPECIFICATIONS
STANDARD & OPTIONAL EQUIPMENT
Explore standard equipment, optional equipment and warranty information for the TL100 Mini Track Loader.
SPECIFICATIONS
STANDARD EQUIPMENT
OPERATOR ENVIRONMENT
- Hydraulic pilot joystick control
- Loader and ground drive control lockout
- Cushioned operator platform
- Operator presences sensor
ENGINE
- Engine tip-over shut-off
- Glow plug starting aid
- Locking fuel cap
- Electric fuel pump
- Lock-able hood compartment
DRIVETRAIN
- Dual hydrostatic drive motors
- 5 roller undercarriage
- Narrow rubber track belt
HYDRAULICS
- 3-spool loader control valve
- 1x dual acting auxiliary hydraulics
- Proportional auxiliary hydraulic control on joystick with detent
- 1-way or 2-way auxiliary hydraulic selector valve
- Loader arm float
TELEMATICS
- MyCASEConstruction Telematics - Includes hardware and 7-yr data subscription
LOADER
- Radial lift geometry
- CII mechanical attachment coupler
- Loader lift arm support strut
- 2x additional counterweight
ELECTRICAL
- 12V power plug socket
- Front and rear LED work lights
OPTIONAL EQUIPMENT
DRIVETRAIN
- Wide rubber track belt
HYDRAULICS
- Case drain attachment connection
- Bio-hydraulic oil and lubricants
LOADER
- 36 in. dirt bucket
- 42 in. dirt bucket
- Bolt on bucket teeth
- Bolt on bucket cutting edge
- 6x additional counterweights
ELECTRICAL
- 14-pin electrical auxiliary connection
WARRANTY
BASE WARRANTY COVERAGE
- 2-Year / 2,000 Hour Base Warranty
- Full Machine Limited Warranty
