421G Compact Wheel Loader

The compact wheel loader revolution is here and the new 421G is leading the charge. Brawnier than a compact and nimbler than bigger machines, the 421G flexes more earth-moving muscle when tough excavation work, nursery jobs or farm chores demand gutsy performance. Its 112 hp engine delivers all the torque and break out force you need to bust piles and manhandle aggregate. Plus, thanks to a lifting capacity of 15,806 lb (7,170 kg) and hinge pin height of 145 inches, you can rest easy knowing that your machine will never be vertically challenged. A standard 416 JRB coupler allows for easy attachment changes without ever leaving the seat. Want to load dirt without breaking your spine? Relax! We added a comfortable operator’s seat with EH controls, a post-mounted monitor display, and unheard of 270-degree visibility for better sightlines to attachments. We even included ground-level serviceability with a rear hood that lifts with a touch of a button – providing easy access to all maintenance points. Bottom line? The 421G is all job-crushing power with zero compromise.

Horsepower
112 hp | 82 kW
Operating Weight
19,775 lb | 8 970 kg
FIND A DEALER
OFFERS & PROMOTIONS
REQUEST A QUOTE
FIND & ORDER PARTS
TAKE A CLOSER LOOK
WALKAROUND
When it comes to heavy equipment, performance isn’t a luxury—it’s a necessity. The latest advancements in operator comfort, control, and efficiency don’t just make your job easier, they make it faster, safer, and more precise. This is more than just an upgrade—it’s a game-changer.

BROCHURE & SPECS

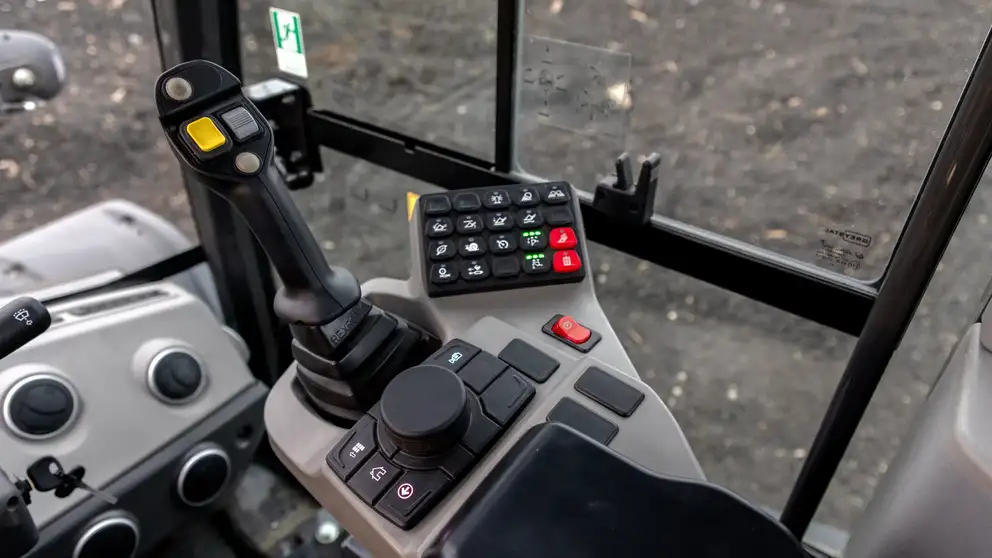

compact wheel loader cab and controls

SPECIFICATIONS

STANDARD & OPTIONAL EQUIPMENT

Explore standard equipment, optional equipment and warranty information for the 421G Compact Wheel Loader.
VIEW

SPECIFICATIONS

STANDARD EQUIPMENT

OPERATOR ENVIRONMENT

  • ROPS: ISO 3471: 2,008 lb (6 800 kg)
  • Deluxe Cab w/ heater and A/C
  • Full adjustable, cloth suspension seat
  • Single joystick w/ electronic speed shift control F/N/R switch proportional loader control and proportional hydraulic auxiliary w/ detent switch hydraulic
  • 4 Corner Strobes
  • Display w/ encoder and integrated backup camera
  • 416 JRB compatible coupler

ENGINE

  • FPT F5MGL413J
  • Smart Mode Feature

DRIVETRAIN

  • 4-wheel drive – shift on the fly
  • Open – front and rear axles
  • Hydrostatic transmission
  • Single joystick with electronic speed shift control F/N/R switch and proportional loader control
  • Outboard planetary axles
  • Hydraulic wet disc brakes
  • Mechanical parking brake

HYDRAULICS

  • 3-spool loader control valve
  • 3 Diagnostic quick couplers
  • Adjustable electro hydraulic (EH) loader controls. Smooth, moderate & aggressive settings for both lift and tilt
    • Return to dig
    • Hydraulic skid steer compatible coupler
    • Connect under pressure connectors
    • Remote drain of hydraulic oil
    • Aux. Hydraulic drain line coupling

OTHER

  • Articulation locking pin
  • Tie-down and Lift-up point – front and rear
  • Bucket position indicator
  • 4 corner strobes

OPTIONAL EQUIPMENT

OPERATOR ENVIRONMENT

  • Creep speed
    • 0 – 3.1 mph (5 kph)
  • TeleScop adjustable steering column on Deluxe Cab
  • Limited slip – front and rear axles
  • 100% lock – front and open rear axles

LOADER

  • Optional High Flow:
    • Max. 34.3 gpm @ 2500 RPM @ 2,901 psi (Max. 130 L/min @ 2500 RPM @ 20 000 kPa)

OTHER

  • LED work lights, 2 front and 2 Rear

WARRANTY

BASE & EXTENDED WARRANTY COVERAGE

  • 1 Year / Unlimited Hour Full Coverage Base Warranty
  • Engine Warranty - Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump.

PURCHASED PROTECTION

  • Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help determine and customize the plan that fits your needs. Plans are available at any month/hour amount on CASE Compact Wheel Loader models.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
