651G Wheel Loader

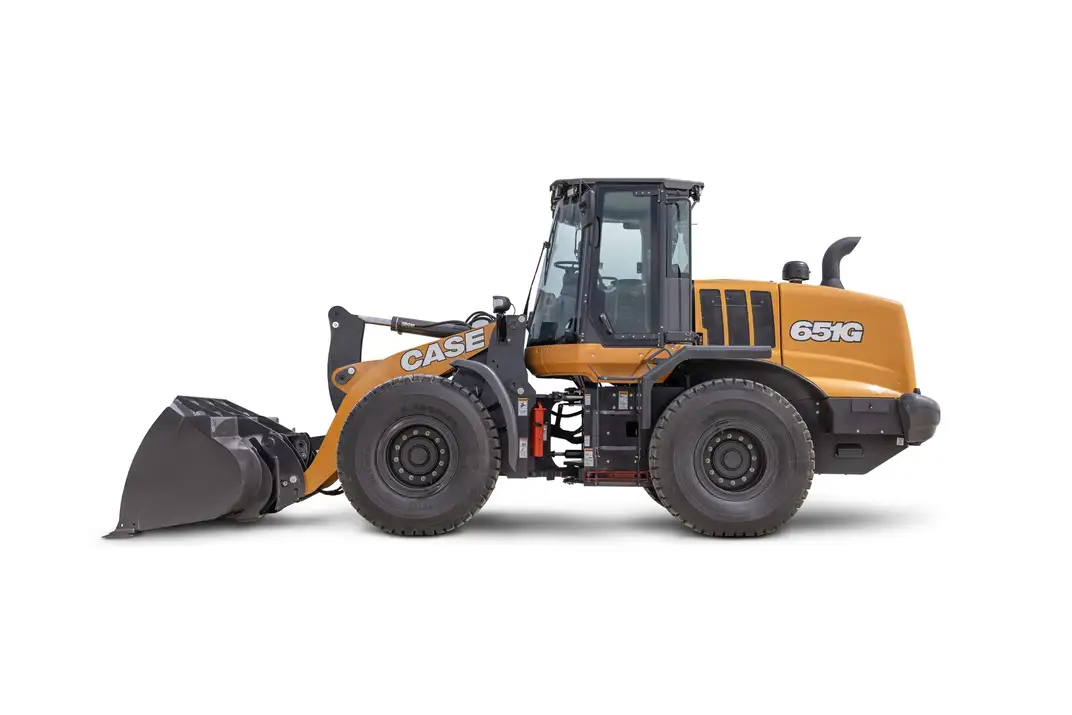

The fresh-faced machine here is the CASE 651G, the newest member of our large wheel loader family. This one has get-it-done written all over it. The operating weight has been bumped up, and it brings along increased lifting capacity. The hinge pin height has been raised 4 in. for more clearance loading trucks and TMR mixers. A larger pump capacity provides more flow for faster loader cycle times. The new curved bucket offers better material retention. And the cab is the envy of the industry, with an 8-in. LCD touchscreen, lots of room and adjustable suspension seat. Yep, productivity definitely runs in the family.
Horsepower
172 hp | 128 kW
Operating Weight
30,890 lb | 14 012 kg
TAKE A CLOSER LOOK
WALKAROUND
Take a quick tour and get a good look at the features and technology that make the 651G the kind of all-around, highly productive, easy-to-operate workhorse that keeps you running efficiently and making money from the minute operators climb into its comfortable cab.
SPECIFICATIONS
STANDARD & OPTIONAL EQUIPMENT
Explore standard equipment, optional equipment and warranty information for the 651G Wheel Loader.
SPECIFICATIONS
STANDARD EQUIPMENT
OPERATOR ENVIRONMENT
- ROPS cab AC w/ heat
- 8” LCD touchscreen display, adjustable armrest w/ 3 configurable buttons
- Fully adjustable, suspension seat w/ headrest
- Radio ready – Includes antenna, speakers, wiring, radio fuse, 20A converter, 12-volt auxiliary power outlet, and USB outlet.
ENGINE
- CASE/FPT F4HFE613W*B007
- Tier 4 Final Certified
- Selective Catalytic Reduction (SCR) with Diesel Oxidation Catalyst
DRIVETRAIN
- 4F/3R Selectable autoshift /manual shift transmission
- Electronic Control Module – programmable, computer controlled proportional shifting with programmable gear selection
- Single lever electronic shift control
- F/N/R switch in loader control handle
- Downshift button
- Torque converter
HYDRAULICS
- Adjustable Electro-hydraulic - EH loader control with one auxiliary function and 3 configurable buttons
- Ride Control™
- Locking hydraulics for hydraulic coupler
ELECTRICAL
- Lights:
- Integrated 4-corner strobe
- 2 Front and 2 rear halogen flood lights
- 2 Front driving headlights – high/low beam with integrated turn signals
- 2 LED stop/tail lights with integrated turn signals
OTHER
- Heavy counterweight
TELEMATICS
- CASE SiteWatch™ Telematics – includes hardware and a 3-yr Advanced data subscription
OPTIONAL EQUIPMENT
OPERATOR ENVIRONMENT
- Cloth-covered heated air-suspension seat with headrest
- External heated rear view mirrors
- Front LED driving/headlights/LED heated lens
LOADER
- XR extended reach version
- XT tool carrier version
- Attachment auxiliary hydraulics
- Coupler systems – JRB or ACS compatible
TIRES
- 20.5-R25 radial Michelin SnoPlus
WARRANTY
BASE & EXTENDED WARRANTY COVERAGE
- CASE ProCare applicable on select new heavy machine orders.
See your CASE dealer for model availability and timing.
