CX30D
Compact yet powerful, the CX30D mini excavator delivers exceptional performance and control in tight spaces. With a robust Kubota D1703-M engine (24.4 hp), zero-tail swing, and advanced hydraulics, it’s ideal for urban jobsites or landscape work. The CX30D features a load-sensing hydraulic system with flow-sharing technology, providing smooth, precise operation. Its customizable auxiliary circuits, two-speed travel with auto shift, and electro-hydraulic joystick controls ensure optimal productivity. Available with cab or canopy, it offers a max digging depth of 2.83 m and operating weight up to 3.24 t. Built tough for real-world challenges, this mini excavator pairs compact agility with CASE durability.
DOWNLOADS
Download Brochures
Share or download a brochure for additional information.

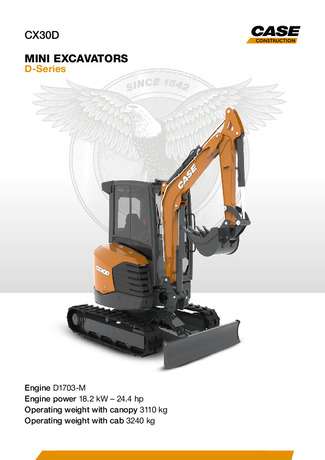

CX30D - Specsheet
1.71MBWeight
3240 kg - Cab version
Digging Depth
2640 mm
Explore the Features
SPECIFICATIONS
Standard Equipment
- Tiltable Cab/Canopy (ROPS/ TOPS - FOPS Level 1)
- Automatic Courtesy light
- Electric socket on the roof for Rotating Beacon
- Windshield washer
- Rear-view mirrors (left, right)
- Fabric seat with Mechanical suspension (cab)
- Vinyl seat with Mechanical suspension (canopy)
- Standard arm
- Object handling kit (block valves on boom and arm, lifting hook and load chart)
- Boom Lift cylinder and dozer blade cylinder protection
- Standard counterweight
- Air Filter with drain valve and electric anti-clogging indicator
- Servo-assisted hydraulic joysticks with Electro-Hydraulic proportional controls
- Electro-Hydraulic proportional Swing control
- 1st Auxiliary (AUX1) circuit with Electro- Hydraulic proportional control
- AUX1 circuit maximum flow mechanical setting
- Mechanical diverter between Single effect and Double effect AUX1
- 2 speed travel with Automatic Shift Down (from 2nd to 1st gear if more traction is required) and Shift-up
- Rubber tracks
- Standard Dozer Blade
- Operator manual
- Ignition key, which opens every machine lock
- Standard LED working lights (boom)
- Battery disconnect switch
- Variable Volume Pump
- Standard Hydraulic oil and Lubricants
- CASE Sitewatch and SiteConnect
SPECIFICATIONS
Optional Equipment
- Air conditioning and Heating
- DAB Radio, Bluetooth, USB, Aux-in (cab only))
- Anti-Theft
- Fabric seat with Pneumatic suspension (cab)
- Travel alarm
- Long arm
- Additional counterweight
- Electric fuel refill pump
- 2nd Auxiliary (AUX2) circuit with Electro- Hydraulic proportional control
- 3rd Auxiliary (AUX3) circuit with Electro- Hydraulic proportional control
- Grapple provision (AUX3 with flow diverter from bucket cylinder)
- Direct Drainage to tank
- Block valves on dozer blade cylinder
- Steel tracks
- Dozer Float
- Extra LED working lights (cabfront and cab-rear)
- Rotating beacon
- Bio Hydraulic oil and Lubricants
- Constant Flow provision (i.e. for Mulcher): max constant flow of 31 l/min at 180 bar
- Hydraulic quick coupler provision (Single or Double Effect)
- Mechanical and Hydraulic quick couplers
- Buckets
- Electro-proportional Aux 1 flow setting
- Electro-proportional Engine RPM control
- Automatic Centralized Lubrication
Compatible Attachments
Your CASE equipment is the platform - your attachments make the difference in how much work you win and how profitable your machine is.
SPECIFICATIONS
Compare Specifications
ENGINE | ||||||||||||||||||||
Type | ||||||||||||||||||||
Max. Power (kW / hp) | ||||||||||||||||||||
Displacement (cm³) | ||||||||||||||||||||
Supply | ||||||||||||||||||||
Number of cylinders (n°) | ||||||||||||||||||||
Cooling | ||||||||||||||||||||
Consumption (l/h) | ||||||||||||||||||||
Alternator V (Ah) | ||||||||||||||||||||
Battery V (Ah) | ||||||||||||||||||||
HYDRAULIC SYSTEM | ||||||||||||||||||||
SLEWING & TRAVEL SPEED | ||||||||||||||||||||
CONTROLS | ||||||||||||||||||||
WEIGHTS | ||||||||||||||||||||
CIRCUIT AND COMPONENT CAPACITIES | ||||||||||||||||||||
SUPPLY | ||||||||||||||||||||
CHARGING TIMES | ||||||||||||||||||||
OPERATING MODES | ||||||||||||||||||||
* with latch
** with holding function
*** with rubber tracks
