CX38D
The CASE CX38D mini excavator brings power and versatility to any jobsite. Equipped with the same reliable 24.4 hp Kubota engine as the CX30D, it offers more lifting capacity and a deeper digging depth—up to 3.32 m. This model stands out with a wider undercarriage for added stability and a stronger breakout force. Featuring the same advanced load-sensing hydraulics, flow-sharing control valve, and electro-hydraulic joystick control, the CX38D also supports multiple auxiliary circuits and offers comfort upgrades such as air conditioning and a pneumatic seat. With a 3.91 t operating weight, it’s the ideal choice for demanding work in confined areas.
DOWNLOADS
Download Brochures
Share or download a brochure for additional information.

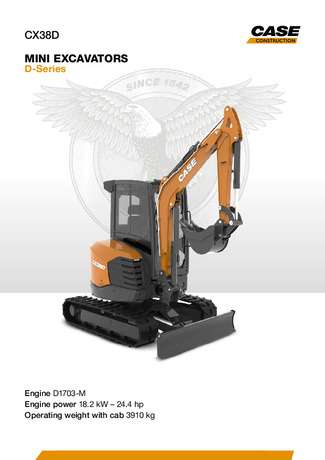

CX38D - Specsheet
1.58MBWeight
3910 kg - Cab version
Digging Depth
3070 mm
Explore the Features
SPECIFICATIONS
Standard Equipment
- Tiltable Cab (ROP/TOPS - FOPS Level 1)
- Automatic Courtesy light
- Electric socket on the roof for Rotating Beacon
- Windshield washer
- Rear-view mirrors (left, right)
- Fabric seat with Mechanical suspension
- Standard arm
- Boom Lift cylinder and dozer blade cylinder protection
- Object handling kit (block valves on boom and arm, lifting hook and load chart)
- Standard counterweight
- Air Filter with drain valve and electric anti-clogging indicator
- Servo-assisted hydraulic joysticks with Electro-Hydraulic proportional controls
- Electro-Hydraulic proportional Swing control
- 1st Auxiliary (AUX1) circuit with Electro- Hydraulic proportional control
- AUX1 circuit maximum flow mechanical setting
- Mechanical diverter between Single effect and Double effect AUX1
- 2 speed travel with Automatic Shift Down (from 2nd to 1st gear if more traction is required) and Shift-up
- Rubber tracks
- Standard Dozer Blade
- Operator manual
- Ignition key, which opens every machine lock
- Standard LED working lights (boom)
- Battery disconnect switch
- Variable Volume Pump
- Standard Hydraulic oil and Lubricants
- CASE Sitewatch and SiteConnect
SPECIFICATIONS
Optional Equipment
- Air conditioning and Heating
- DAB Radio, Bluetooth, USB, Aux-in
- Anti-Theft
- Fabric seat with Pneumatic suspension
- Travel alarm
- Long arm
- Additional counterweight
- Electric fuel refill pump
- 2nd Auxiliary (AUX2) circuit with Electro-Hydraulic proportional control
- 3rd Auxiliary (AUX3) circuit with Electro-Hydraulic proportional control
- Grapple provision (AUX3 with flow diverter from bucket cylinder)
- Direct Drainage to tank
- Block valves on dozer blade cylinder
- Steel tracks
- Dozer Float
- Extra LED working lights (cab-front and cab-rear)
- Rotating beacon
- Bio Hydraulic oil and Lubricants
- Constant Flow provision (i.e. for Mulcher): max constant flow of 31 l/min at 180 bar
- Hydraulic quick coupler provision (Single or Double Effect)
- Mechanical and Hydraulic quick couplers
- Buckets
- 6-way dozer blade
- Electro-proportional Aux 1 flow setting
- Electro-proportional Engine RPM setting
- Automatic Centralized Lubrication
Compatible Attachments
Your CASE equipment is the platform - your attachments make the difference in how much work you win and how profitable your machine is.
SPECIFICATIONS
Compare Specifications
ENGINE | ||||||||||||||||||||
Type | ||||||||||||||||||||
Max. Power (kW / hp) | ||||||||||||||||||||
Displacement (cm³) | ||||||||||||||||||||
Supply | ||||||||||||||||||||
Number of cylinders (n°) | ||||||||||||||||||||
Cooling | ||||||||||||||||||||
Consumption (l/h) | ||||||||||||||||||||
Alternator V (Ah) | ||||||||||||||||||||
Battery V (Ah) | ||||||||||||||||||||
HYDRAULIC SYSTEM | ||||||||||||||||||||
SLEWING & TRAVEL SPEED | ||||||||||||||||||||
CONTROLS | ||||||||||||||||||||
WEIGHTS | ||||||||||||||||||||
CIRCUIT AND COMPONENT CAPACITIES | ||||||||||||||||||||
SUPPLY | ||||||||||||||||||||
CHARGING TIMES | ||||||||||||||||||||
OPERATING MODES | ||||||||||||||||||||
* with latch
** with holding function
*** with rubber tracks
