CX255E SR Large Crawler Excavator
Wherever the job takes you, the CASE CX255E SR is built to get to work. Its short-radius design delivers a compact footprint that's well suited for restricted jobsites, from bridge and road work to residential and urban construction. Smooth operation, precise control and an operator-focused cab help keep you comfortable and productive throughout the day. It's big capability built for the places where working room is at a premium.
Horsepower
160 hp | 119.3 kW
Operating Weight
56,900 lb | 25,800 kg
TAKE A CLOSER LOOK
WALKAROUND
The CASE CX255E SR delivers big performance in tight spaces. Its short-radius design makes it a strong fit for urban, residential and infrastructure work where room to maneuver is limited. Add smooth control, attachment versatility and operator-focused comfort, and you've got a machine ready to take on demanding work without demanding more space.

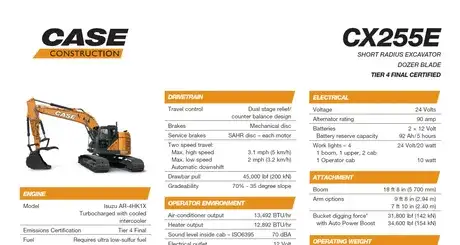

SPECIFICATIONS
STANDARD & OPTIONAL EQUIPMENT
Explore standard equipment, optional equipment and warranty information for the CX255E SR Short-Radius Large Crawler Excavator.
SPECIFICATIONS
STANDARD EQUIPMENT
ENGINE
- Isuzu four-cylinder turbo-charged diesel
- Tier 4 Certified - Turbocharged, air cooled intercooler
- Diesel Oxidation Catalyst - DOC
- Glow-plug pre-heat
- 500-hour engine oil change interval
- 24-volt system
OPERATOR ENVIRONMENT
- Auto climate control
- 10 in full-color LCD monitor display
- AM/FM/Bluetooth radio with hands-free phone
- Rear-view mirror - Cab side and right side
- Rear and right-side view camera
TELEMATICS
- myCASEConstruction – includes hardware and a 7-yr advanced data subscription for 2-way communication
OPTIONAL EQUIPMENT
HYDRAULICS
- Auxiliary hydraulics:
- Joystick activated proportionally controlled secondary low-flow auxiliary hydraulics
- Assist & Payload
MACHINE CONTROL
- Leica iCON iXE2 – 2D System
- Leica iCON iXE3 – 3D System
UNDERCARRIAGE
- 23.6 in (600 mm) rubber shoes
- 23.6 in (600 mm) steel shoes, triple semi-grouser
- 27.6 in (700 mm) steel shoes, triple semi-grouser
OPERATOR ENVIRONMENT
- FOPS cab top guard – Level 2
- Front grill guard – 2 x 2 in screen mesh
- Front rock guard – vertical bars Two piece/OPG 1
- Front rock guard – vertical bars One piece/OPG 2
- CASE MaxView Monitor
- LED work lights
WARRANTY
Each CASE excavator provides peace of mind and controlled owning and operating expenses:
- Three-year, 3,000-hour full-machine factory warranty
- 7-year advanced myCASEConstruction subscription
