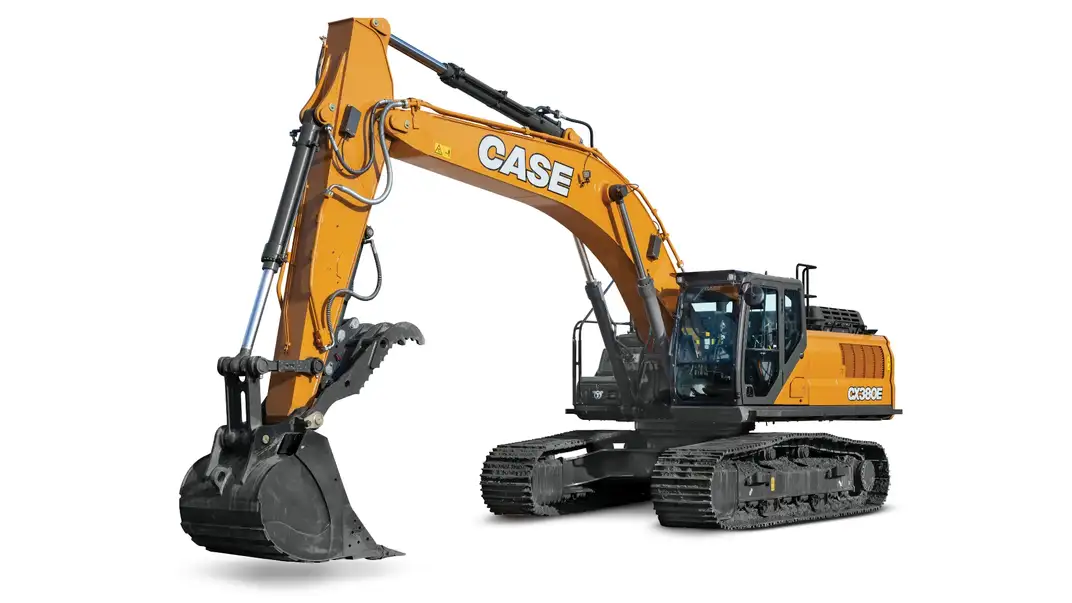

CX380E Large Crawler Excavator
Combining both precision and fast-cycle times, the CASE CX380E is a divot-digging workhorse that lives for moving dirt at construction sites and small quarries. Loaded with 268hp of brute power, Intelligent Hydraulics and one-touch attachment changes, the CX380E doesn’t think twice about delivering over 56,000 lbs. of breakout force. Designed for ease of use, advanced controls with customizable sensitivity settings are all ergonomically located with the operator in mind. A 10-inch display with a 270-degree bird's eye view camera system assures safe and comfortable operation, including setting up arm and swing preferences. Final thoughts? The CX380E is built with all the speed, precision and performance you need to muscle your operation up to the next level.
Horsepower
268 hp | 200 kW
Operating Weight
83,114 lb | 37 700 kg
TAKE A CLOSER LOOK
WALKAROUND
Built like a beast, the CASE CX380E large excavator doesn’t just show up — it takes over. From free swing for smooth trenching to one-touch hookups and massive power on demand, this machine is ready to rip. It’s smart, too — with fuel-saving modes, remote service access, and all-around visibility that keeps you sharp in the chaos. Heavy jobs? Bring ‘em on.
SPECIFICATIONS
STANDARD & OPTIONAL EQUIPMENT
Explore standard equipment, optional equipment and warranty information for the CX380E Large Crawler Excavator.

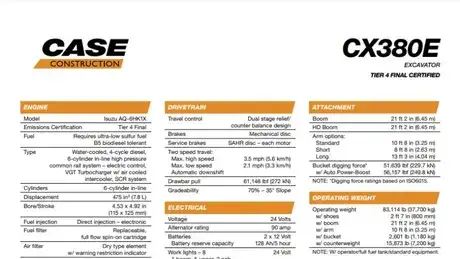

SPECIFICATIONS
STANDARD EQUIPMENT
ENGINE
- Isuzu AQ-6HK1X
- Tier 4 Final Certified
- Selective Catalytic Reduction – SCR
- Diesel Oxidation Catalyst – DOC
- Cooled Exhaust Gas Recirculation – CEGR
- EGR Coolers
- Six-cylinder turbo-charged diesel
- Glow-plug pre-heat
- 500-hour engine oil change interval
- 24-volt system
OPERATOR ENVIRONMENT
- Operators cab:
- 10 in Full-color LCD monitor display with 270-degree camera system
- AM/FM Bluetooth Radio with hands-free phone
- Operator’s seat:
- Low frequency air suspension with air springs and double acting hydraulic
UNDERCARRIAGE
- Long undercarriage 31.5 in (800 mm) steel shoes, triple semi-grouser
ELECTRICAL SYSTEM
- Engine control: Dial type throttle control
- Engine control: One touch idle/Auto deceleration/timed engine shutdown system
OPTIONAL EQUIPMENT
ENGINE
- Hydraulic reversible fan
HYDRAULICS
- Auxiliary hydraulics:
- Proportionally controlled secondary low-flow auxiliary hydraulics
- Hose Burst Check Valve – HBCV
MACHINE CONTROL
- Leica iCON iXE2 – 2D System
- Leica iCON iXE3 – 3D System
ATTACHMENTS
- Quick coupler/Case multi-pin grabber tools
UNDERCARRIAGE
- 33.5 in (850 mm) steel shoes, triple semi-grouser
OPERATOR ENVIRONMENT
- FOPS cab top guard – Level 2
- Front grill guard – 2 x 2 in (50.8 x 50.8 mm) screen mesh
- Front rock guard – vertical bars Two piece/OPG 1
- Front rock guard – vertical bars One piece/OPG 2
WARRANTY
Base & Extended Warranty Coverage
- 1 Year / 1,800 Hour Full Coverage Base Warranty
- 2 Year / 2,000 Hour Engine Warranty
- Engine Warranty - Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump.
Note: Warranty does not cover any configuration excavator equipped with feller buncher or accumulator attachments.
PURCHASED PROTECTION
- Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to three-years / 5,000 hours on CASE Skid Steer Loader models.
Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
