CX85E Midi Excavator
Digging for paydirt? The CASE CX85E packs all the power and performance of a heavyweight contender into a compact, site-friendly package. A 72 hp engine enables this scrappy middleweight to go twelve rounds with any construction, land clearing or landscaping job that tries to stare it down. Designed with a fixed boom for lifting, craning and loading at height, it delivers a knockout punch to tight spaces with virtually zero tail swing – so you can work against walls, fences and other structures. Designed for running complex attachments, the EH controls are fully customizable for speed and response. Easy to service with rock-solid reliability, the CX85E is designed for nothing but uptime. Add the LED lights package with more lights than anyone in the industry and you can see how this midi really shines. From confined jobsites to full-bore performance, the CX85E proves small doesn’t mean soft.
Horsepower
72 hp | 53.3 kW
Operating Weight
19,467 lb | 8 830 kg
TAKE A CLOSER LOOK
WALKAROUND
This machine doesn’t flinch. The CASE CX85E midi excavator brings heavyweight muscle to tight quarters, with zero tail swing, a 72 hp engine and jobsite-tough features built to go round for round with any challenge.

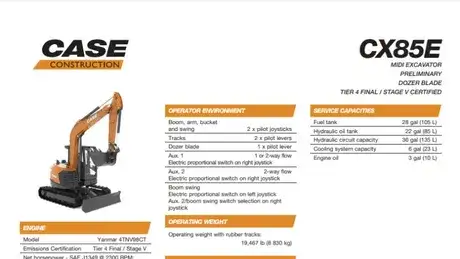

BROCHURE & SPECS
SPECIFICATIONS
STANDARD & OPTIONAL EQUIPMENT
Explore standard equipment, optional equipment and warranty information for the CX85E Midi Excavator.
SPECIFICATIONS
STANDARD EQUIPMENT
ENGINE
- Yanmar 4TNV98CT
- Tier 4 Final/Stage V compliant
HYDRAULICS
- High flow 1-/2-way auxiliary hydraulics (Aux. 1)
- Attachment quick coupler auxiliary hydraulics (2-way l double effect)
UPPER STRUCTURE
- Zero Tail Swing (with standard counterweight)
- Long arm with thumb bracket
- Pin-on Bucket
- Enclosed cab with ROPS/TOPS/FOPS Level 1
- Standard counterweight
- Bucket linkage with lifting hook
- Tiltable Cab (ROPS/TOPS - FOPS Level 1)
OPERATOR ENVIRONMENT
- Auto climate control A/C and heating
- Adjustable air suspension heated seat with seat belt
- 7-inch LCD display with navigation console
- Rear view camera
UNDERCARRIAGE
- 18" steel shoes with rubber pad tracks
- Dozer blade with float
OPTIONAL EQUIPMENT
HYDRAULICS
- Undercarriage & Track Drive:
- 18" steel track shoes
- Undercarriage & Track Drive:
- 24" steel track shoes
- Undercarriage & Track Drive:
- Rubber belt tracks
- 6-way dozer blade with cutting edge, float and dual side foldable extensions
UPPER STRUCTURE
- Short arm with thumb bracket
- Full range of attachment quick couplers
- Full range of buckets
- Hydraulic thumb
WARRANTY
Base & Extended Warranty Coverage
- 1 Year / 1,800 Hour Full Coverage Base Warranty
- 2 Year / 2,000 Hour Engine Warranty
- Engine Warranty - Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump.
Note: Warranty does not cover any configuration excavator equipped with feller buncher or accumulator attachments.
PURCHASED PROTECTION
- Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to three-years / 5,000 hours on CASE Skid Steer Loader models.
Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
