CX90E Midi Excavator
When it comes to chewing up trees, busting rock and digging trenches – sometimes less is more. Built smaller for massive results, the CASE CX90E muscles its way into tight spaces that larger excavators don’t dare tread. Its gritty performance begins with a gutsy 72 hp engine that delivers all the torque and breakout force required for aggressive digging and lifting. Equipped with a boom that swings, the CX90E provides better reach and dig depth when crushing jobs in confined spaces. Need to keep your operation up and running? Relax! All service checkpoints and engine components are easily accessible from ground-level. To add versatility to the jobsite, optional track types make it easy to stay on track – even on hard surfaces like asphalt and concrete. Add it all up and the CX90E is a midi digger that’s ready to make an oversized impression on your bottom line.
Horsepower
72 hp | 53.3 kW
Operating Weight
20,305 lb | 9 210 kg
TAKE A CLOSER LOOK
WALKAROUND
Don’t let the size fool you — the CASE CX90E is all muscle where it matters. With a 72 hp engine, swing boom, and customizable controls, this machine brings big-excavator energy to tight jobsites.

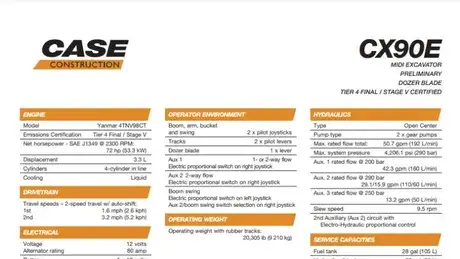

BROCHURE & SPECS
SPECIFICATIONS
STANDARD & OPTIONAL EQUIPMENT
Explore standard equipment, optional equipment and warranty information for the CX90E Midi Excavator.
SPECIFICATIONS
STANDARD EQUIPMENT
ENGINE
- Yanmar 4TNV98CT
- Tier 4 Final/Stage V compliant
HYDRAULICS
- High flow 1-/2-way auxiliary hydraulics (Aux. 1)
- Attachment quick coupler auxiliary hydraulics (2-way l double effect)
UPPER STRUCTURE
- Zero Tail Swing (with standard counterweight)
- Long arm with thumb bracket
- Pin-on Bucket
- Enclosed cab with ROPS/TOPS/FOPS Level 1
- Standard counterweight
- Bucket linkage with lifting hook
- Tiltable Cab (ROPS/TOPS - FOPS Level 1)

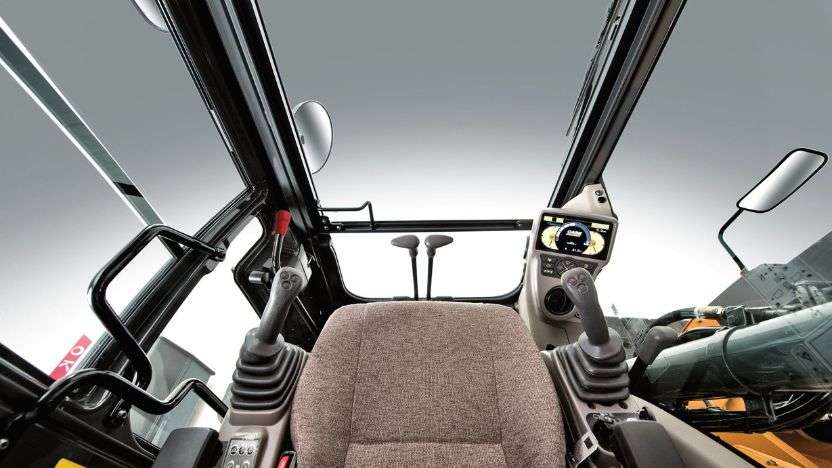

OPERATOR ENVIRONMENT
- Auto climate control A/C and heating
- Adjustable air suspension heated seat with seat belt
- Electro-hydraulic controlled joysticks for boom, arm, boom swing and proportional controls for Aux. 1, Aux. 2 and Aux. 3
- 7-inch LCD display with navigation console
- Rear view camera
UNDERCARRIAGE
- 18" steel shoes with rubber pad tracks
- Dozer blade with float
OPTIONAL EQUIPMENT
HYDRAULICS
- Undercarriage & Track Drive:
- 18" steel track shoes
- Undercarriage & Track Drive:
- 24" steel track shoes
- Undercarriage & Track Drive:
- Rubber belt tracks
- 6-way dozer blade with cutting edge, float and dual side foldable extensions
UPPER STRUCTURE
- Short arm with thumb bracket
- Full range of attachment quick couplers
- Full range of buckets
- Hydraulic thumb
WARRANTY
Base & Extended Warranty Coverage
- 1 Year / 1,800 Hour Full Coverage Base Warranty
- 2 Year / 2,000 Hour Engine Warranty
- Engine Warranty - Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump.
Note: Warranty does not cover any configuration excavator equipped with feller buncher or accumulator attachments.
PURCHASED PROTECTION
- Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to three-years / 5,000 hours on CASE Skid Steer Loader models.
Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
