121G Compact Wheel Loader
The CASE 121G compact wheel loader packs lifting capability, maneuverability and attachment versatility into a machine made for tight jobsites. Its compact design helps operators move confidently through confined spaces while taking on loading, lifting and material handling work.
The G Series update brings a more operator-focused cab with improved visibility, a new right-side window and door, and controls positioned for greater comfort and easier access. It’s the versatility of a compact wheel loader with a better place to spend the workday.
*Machine shown is not an exact representation of the final 121G production model.
Horsepower
64 hp | 48 kW
Operating Weight
11,883 lb | 5 390 kg
TAKE A CLOSER LOOK
WALKAROUND
See how the CASE 121G pairs versatile compact wheel loader performance with an updated cab built around the operator. Better sightlines, improved right-side access and a more ergonomic control layout help make loading, lifting and attachment work feel more natural throughout the day.

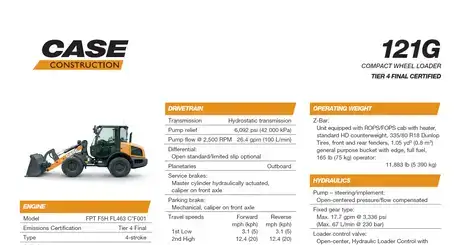

SPECIFICATIONS
STANDARD & OPTIONAL EQUIPMENT
Explore standard equipment, optional equipment and warranty information for the 121G Compact Wheel Loader.
SPECIFICATIONS
STANDARD EQUIPMENT
OPERATOR ENVIRONMENT
- Deluxe Cab w/ heater and A/C
- Full adjustable, cloth suspension seat
- Single joystick w/ electronic speed shift control F/N/R switch proportional loader control and proportional hydraulic auxiliary w/ detent switch hydraulic.
- 4 Corner Strobes
- SSL compatible coupler
ENGINE
- FPT F5H FL463 C*F001
DRIVETRAIN
- 4-wheel drive
- Hydrostatic transmission
- Outboard planetary axles
- Mechanical parking brake
HYDRAULICS
- 3-spool main control valve
- Adjustable electro hydraulic (EH) loader controls. Smooth, moderate & aggressive settings for both lift and tilt responsiveness.
- Return to Dig
LOADER SYSTEM
- Z-Bar:
- Z-Bar loader linkage
- Seat Mounted Single Control for lift and tilt
- Positive hold float
OTHER
- Articulation locking pin
- Tie-down and Lift-up point – front and rear
- Bucket position indicator
TELEMATICS
- MyCASEConstruction Telematics – Includes hardware and 7-yr data subscription
OPTIONAL EQUIPMENT
OPERATOR ENVIRONMENT
- Creep speed
- 0 – 3.1 mph (5 kph)
- Horizontal pin coupler
LOADER
- STD forks
- Auto Ride Control w/speed settings
WARRANTY
BASE & EXTENDED WARRANTY COVERAGE
- 1 Year / Unlimited Hour Full Coverage Base Warranty
- Engine Warranty - Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump.
PURCHASED PROTECTION
- Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help determine and customize the plan that fits your needs. Plans are available at any month/hour amount on CASE Compact Wheel Loader models.
Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
