21G Compact Wheel Loader
Big capability doesn’t need a big footprint. The CASE 21G compact wheel loader combines the stability, lifting power and hydraulic performance you need to take on demanding work in tight spaces. Now, a redesigned G Series cab puts even more focus on the operator, with improved all-around visibility, a new right-side window and door and controls positioned for easier access.
Compact, capable and comfortable, the 21G gives you the control and versatility to load, lift and put attachments to work with confidence.
*Machine shown is not an exact representation of the final 21G production model.
Horsepower
58 hp | 43 kW
Operating Weight
10,574 lb | 4 796 kg
TAKE A CLOSER LOOK
WALKAROUND
Take a closer look at how the CASE 21G combines compact maneuverability, strong hydraulic performance and an operator-focused G Series cab. Improved visibility, easier access and more intuitive control placement help operators stay comfortable, confident and productive from one task to the next.

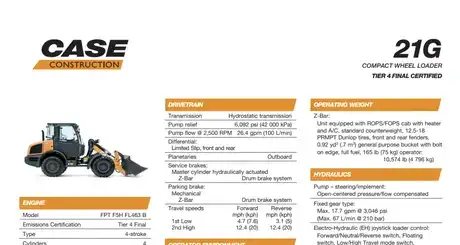

SPECIFICATIONS
STANDARD & OPTIONAL EQUIPMENT
Explore standard equipment, optional equipment and warranty information for the 21G Compact Wheel Loader.
SPECIFICATIONS
STANDARD EQUIPMENT
OPERATOR ENVIRONMENT
- Deluxe Cab w/ heater and A/C
- Full adjustable, cloth suspension seat
- Single joystick w/ electronic speed shift control F/N/R switch proportional loader control and proportional hydraulic auxiliary w/ detent switch hydraulic.
- 4 Corner Strobes
- SSL compatible coupler
ENGINE
- FPT F5H FL463 B
DRIVETRAIN
- 4-wheel drive
- Hydrostatic transmission
- Outboard planetary axles
- Mechanical parking brake
HYDRAULICS
- Adjustable electro hydraulic (EH) loader controls. Smooth, moderate & aggressive settings for both lift and tilt responsiveness.
- Return to dig
- Return to Dig
LOADER SYSTEM
- Z-Bar:
- Z-Bar loader linkage
- Seat Mounted Single Control for lift and tilt
- Positive hold float
OTHER
- Articulation locking pin
- Tie-down and Lift-up point – front and rear
- Bucket position indicator
TELEMATICS
- MyCASEConstruction Telematics – Includes hardware and 7-yr data subscription
OPTIONAL EQUIPMENT
OPERATOR ENVIRONMENT
- Creep speed
- 0 – 3.1 mph (5 kph)
- Horizontal pin coupler
LOADER
- STD forks
- Ride Control
WARRANTY
BASE & EXTENDED WARRANTY COVERAGE
- 1 Year / Unlimited Hour Full Coverage Base Warranty
- Engine Warranty - Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump.
PURCHASED PROTECTION
- Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help determine and customize the plan that fits your needs. Plans are available at any month/hour amount on CASE Compact Wheel Loader models.
Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
