321G Compact Wheel Loader

Finish this job—and move on to what’s next—with the CASE 321G compact wheel loader. Packing strong performance and speed into a small footprint, this mobile worksite warrior features roading speeds of up to 25 mph, moving from job to job without slowing you down. With buckets ranging from 1.3 to 1.7 cubic yards and a 74-hp engine delivers more than enough power to handle tough tasks, while the cab offers complete comfort: all-around visibility, seat-mounted EH controls, double-sided doors and adjustable armrests are a game-changer. You get a standard skid-steer style coupler and hydraulics for handling buckets, forks, snowblowers and more, plus easy maintenance—there’s no DEF or regeneration, and all major service points are accessible from the ground level, getting you back up and running fast. For applications looking for heavy-duty material handling in a swift and comfortable machine, the 321G delivers.

Horsepower
74 hp | 55 kW
Operating Weight
13,691 lb | 6 210 kg
FIND A DEALER
OFFERS & PROMOTIONS
REQUEST A QUOTE
FIND & ORDER PARTS

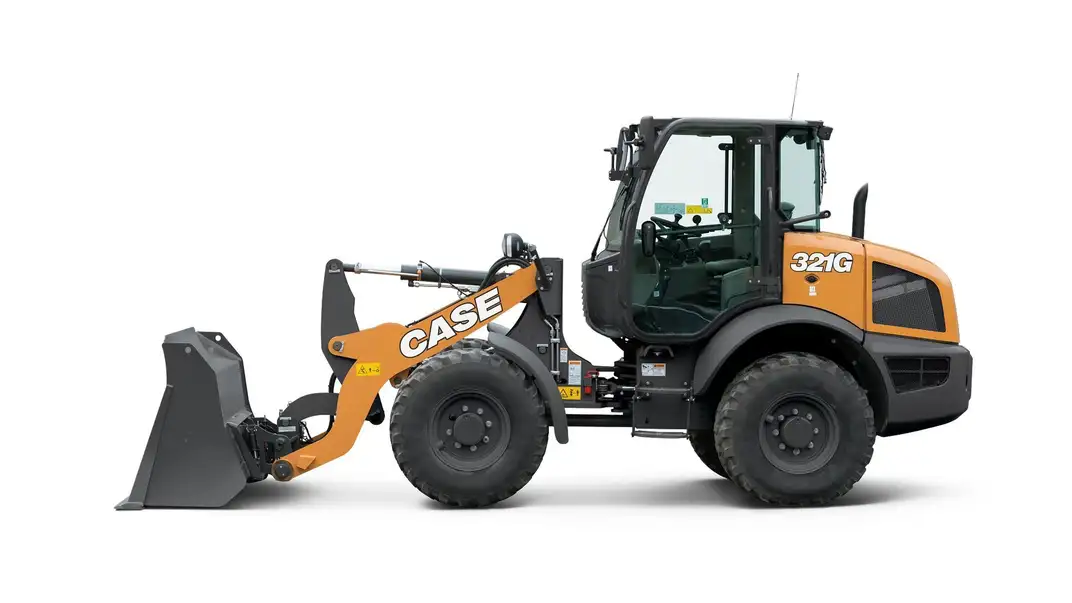

321g
TAKE A CLOSER LOOK
WALKAROUND
Take on demanding material handling with the speed, strength and agility of the CASE 321G. With roading speeds up to 25 mph, a powerful 74 hp engine and high-capacity buckets, it’s built to move quickly between tasks and keep productivity high. Strong lifting capability and available high-flow hydraulics give you the performance to handle tough loads and run demanding attachments with confidence—so you can finish the job and move on to what’s next.

BROCHURE & SPECS

Compact Wheel Loaders & Small Articulated Loaders Brochure

Compact Wheel Loaders & Small Articulated Loaders Brochure

12.91 MB
VIEWDOWNLOAD

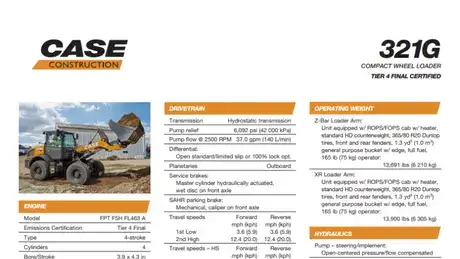

321G Compact Wheel Loader Specifications

321G Compact Wheel Loader Specifications

0.43 MB
VIEWDOWNLOAD
Compact wheel loader

SPECIFICATIONS

STANDARD & OPTIONAL EQUIPMENT

Explore standard equipment, optional equipment and warranty information for the 321G Compact Wheel Loader.
VIEW

SPECIFICATIONS

STANDARD EQUIPMENT

OPERATOR ENVIRONMENT

  • ROPS: ISO 3471: 2,008 lb (6 800 kg)
  • Deluxe Cab w/ heater and A/C
  • Full adjustable, cloth suspension seat
  • Seat Mounted Single joystick w/ electronic speed shift control, F/N/R switch, proportional loader control and proportional hydraulic auxiliary w/detent switch hydraulic
  • 4 Corner Strobes
  • Display w/ encoder and integrated backup camera
  • SSL compatible coupler

ENGINE

  • FPT F5HFL463A
  • Smart Mode Feature

DRIVETRAIN

  • 4-wheel drive
  • Open – front and rear axles
  • Hydrostatic transmission
  • Single joystick with electronic speed shift control F/N/R switch and proportional loader control
  • Outboard planetary axles
  • Hydraulic wet disc brakes
  • Mechanical parking brake

HYDRAULICS

  • 3-spool loader control valve
  • 3 Diagnostic quick couplers
  • Adjustable electro hydraulic (EH) loader controls. Smooth, moderate & aggressive settings for both lift and tilt responsiveness.
    • Return to dig
    • Hydraulic skid steer compatible coupler
    • Connect under pressure connectors
    • Remote drain of hydraulic oil
    • Aux. Hydraulic drain line coupling
  • Return to Dig
  • Hydraulic skid steer compatible coupler

LOADER SYSTEM

  • Z-Bar:
    • Z-Bar loader linkage
    • Seat Mounted Single Control for lift and tilt
    • Positive hold float
    • Hydraulic attachment coupler: Skid steer compatible/horizontal pin compatible
    • Auto Ride Control w/speed settings

OTHER

  • Articulation locking pin
  • Tie-down and Lift-up point – front and rear
  • Rotating beacon
  • Bucket position indicator
  • 4 corner strobes

TELEMATICS

  • MyCASEConstruction Telematics – Includes hardware and 7-yr data subscription


OPTIONAL EQUIPMENT

OPERATOR ENVIRONMENT

  • Creep speed
    • 0 – 3.1 mph (5 kph)
  • Canopy cab
  • Limited slip – front and rear axles
  • 100% lock – front and open rear axles
  • Horizontal pin coupler

LOADER

  • STD forks
  • Optional High Flow:
    • Max. 34.3 gpm @ 2500 RPM @ 2,901 psi (Max. 130 L/min @ 2500 RPM @ 20 000 kPa)

WARRANTY

BASE & EXTENDED WARRANTY COVERAGE

  • 1 Year / Unlimited Hour Full Coverage Base Warranty
  • Engine Warranty - Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump.

PURCHASED PROTECTION

  • Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help determine and customize the plan that fits your needs. Plans are available at any month/hour amount on CASE Compact Wheel Loader models.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
