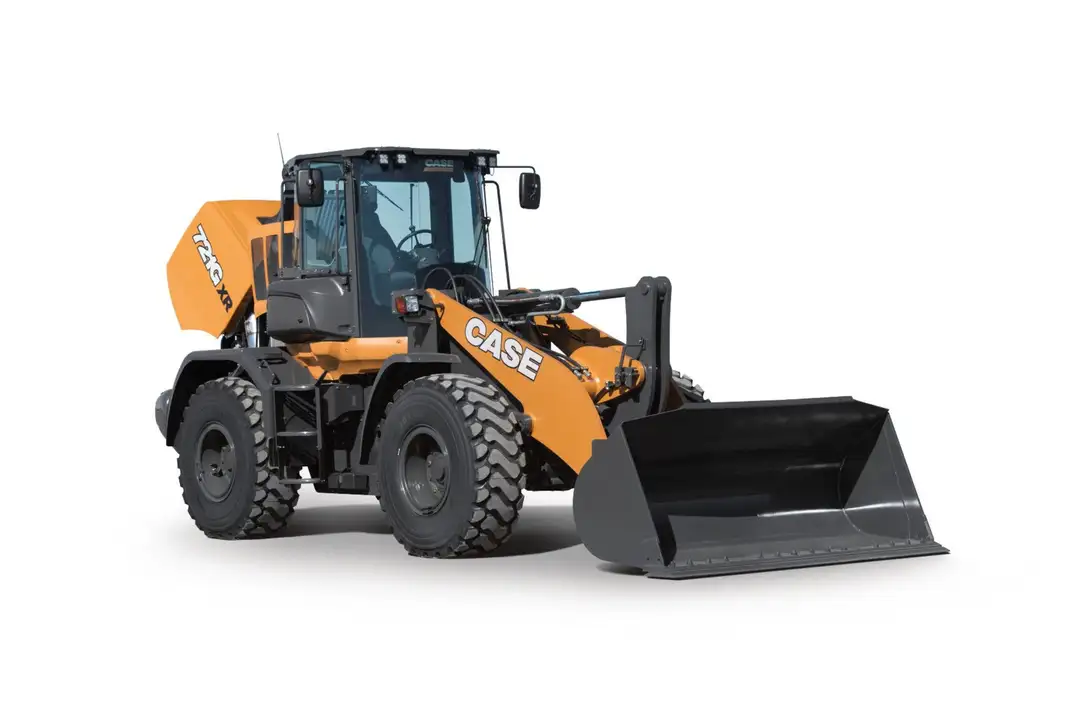

721G Wheel Loader
Wherever operators are looking to get to a destination called done, there’s a good chance you’ll find a 721G. 195 horses provide the burly breakout forces and fast cycle times needed for tough jobs, from large farms to sprawling construction developments. The cab offers big-time comforts like body-saving ergonomics and adjustable electro-hydraulic controls. Plus, there’s an 8” touchscreen display that puts a ton of info at the fingertips. In the 721G, done is closer than ever.
Horsepower
195 hp | 145 kW
Operating Weight
36,011 lb | 16 334 kg
TAKE A CLOSER LOOK
WALKAROUND
Take a quick tour and get a good look at the features and technology that make the 721G the kind of all-around, highly productive, easy-to-operate workhorse that keeps you running efficiently and making money from the minute operators climb into its comfortable cab.
SPECIFICATIONS
STANDARD & OPTIONAL EQUIPMENT
Explore standard equipment, optional equipment and warranty information for the 721G Wheel Loader.
SPECIFICATIONS
STANDARD EQUIPMENT
OPERATOR ENVIRONMENT
- ROPS cab AC w/ heat
- 8” LCD touchscreen display, adjustable armrest w/ 3 configurable buttons
- Fully adjustable, suspension seat w/ headrest
- Radio ready – Includes antenna, speakers, wiring, radio fuse, 20A converter, 12-volt auxiliary power outlet, and USB outlet.
ENGINE
- CASE/ FPT F4HFE613T
- Tier 4 Final Certified
- Selective Catalytic Reduction (SCR) with Diesel Oxidation Catalyst
DRIVETRAIN
- 4F/3R Selectable autoshift /manual shift transmission
- Electronic Control Module – programmable, computer controlled proportional shifting with programmable gear selection
- Single lever electronic shift control
- F/N/R switch in loader control handle
- Downshift button
- Torque converter
HYDRAULICS
- Adjustable Electro-hydraulic - EH loader control with one auxiliary function and 3 configurable buttons
- Ride Control™
- Locking hydraulics for hydraulic coupler
- EH Parallel Lift
ELECTRICAL
- Lights:
- Integrated 4-corner strobe
- 2 Front and 2 rear halogen flood lights
- 2 Front driving headlights - high/low beam with integrated turn signals
- 2 LED stop/tail lights with integrated turn signals
OTHER
- Heavy counterweight
TELEMATICS
- CASE SiteWatch™ Telematics – includes hardware and a 3-yr Advanced data subscription
OPTIONAL EQUIPMENT
OPERATOR ENVIRONMENT
- Cloth-covered heated air-suspension seat with headrest
- External heated rear view mirrors
- Front LED driving/headlights
LOADER
- XR extended reach version
- XT tool carrier version
- Attachment auxiliary hydraulics
- Coupler systems – JRB or ACS compatible
TIRES
- 20.5-R25 radial Michelin SnoPlus
WARRANTY
BASE & EXTENDED WARRANTY COVERAGE
- CASE ProCare applicable on select new heavy machine orders.
See your CASE dealer for model availability and timing.
