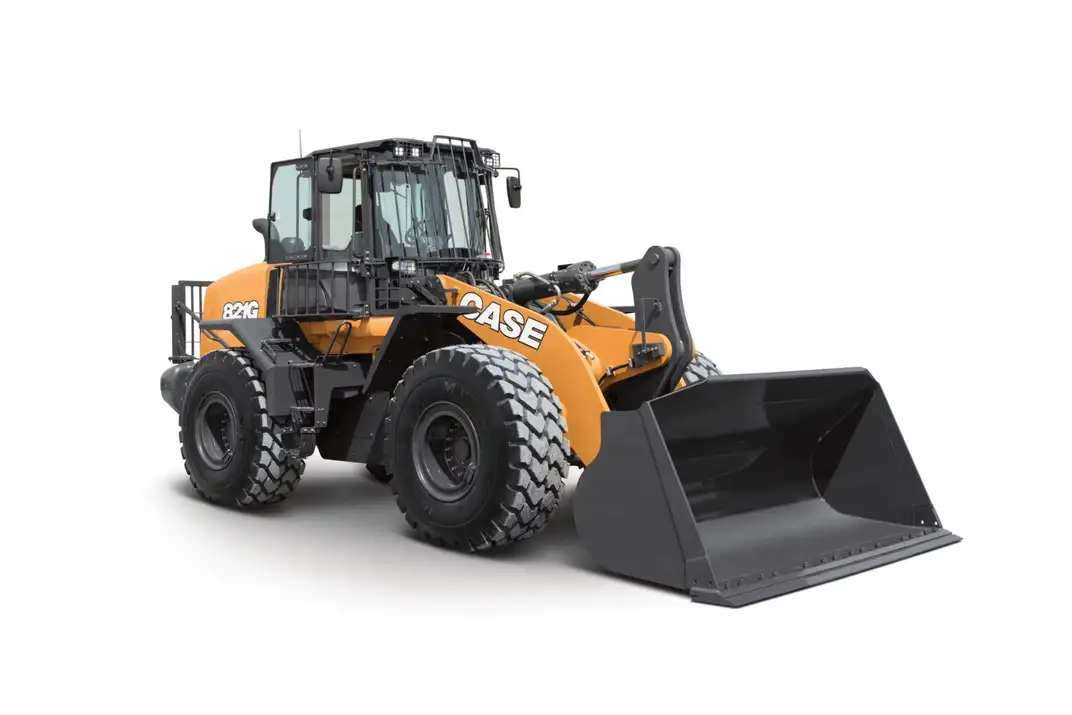

821G Wheel Loader
The 821G is our entry into one of the fastest-growing size classes in North America. It’s 40,057 pounds powered by 230 horses. And it puts brawny breakout forces at your disposal while allowing operators to get around the site at a fast clip. There’s also a roomy, cockpit-like environment. The HVAC keeps the cabin at temp while minimizing dust infiltration. And features like electro-hydraulic controls, touchscreen and programmable buttons put smart, efficient features in easy reach. It’s productivity in a class by itself.
Horsepower
230 hp | 172 kW
Operating Weight
42,414 lb | 19 239 kg
TAKE A CLOSER LOOK
WALKAROUND
Take a quick tour and get a good look at the features and technology that make the 821G the kind of all-around, highly productive, easy-to-operate workhorse that keeps you running efficiently and making money from the minute operators climb into its comfortable cab.
SPECIFICATIONS
STANDARD & OPTIONAL EQUIPMENT
Explore standard equipment, optional equipment and warranty information for the 821G Wheel Loader.
SPECIFICATIONS
STANDARD EQUIPMENT
OPERATOR ENVIRONMENT
- ROPS cab AC w/ heat
- 8” LCD touchscreen display, adjustable armrest w/ 3 configurable buttons
- Fully adjustable, suspension seat w/ headrest
- AM/FM Bluetooth radio w/ auxiliary input
- Radio ready – Includes antenna, speakers, wiring, radio fuse, 20A converter, 12-volt auxiliary power outlet, and USB outlet.
ENGINE
- CASE/ FPT F4HFE613S
- Tier 4 Final Certified
- Selective Catalytic Reduction (SCR) with Diesel Oxidation Catalyst
DRIVETRAIN
- 4F/3R Selectable autoshift /manual shift transmission
- Electronic Control Module – programmable, computer controlled proportional shifting with programmable gear selection
- Single lever electronic shift control
- F/N/R switch in loader control handle
- Downshift button
- Torque converter
HYDRAULICS
- Adjustable Electro-hydraulic - EH loader control with one auxiliary function and 3 configurable buttons
- Ride Control™
- Locking hydraulics for hydraulic coupler
- EH Parallel Lift
ELECTRICAL
- Lights:
- Integrated 4-corner strobe
- 2 Front and 2 rear halogen flood lights
- 2 Front driving headlights - high/low beam with integrated turn signals
- 2 LED stop/tail lights with integrated turn signals
OTHER
- Heavy counterweight
TELEMATICS
- CASE SiteWatch™ Telematics – includes hardware and a 3-yr Advanced data subscription
OPTIONAL EQUIPMENT
OPERATOR ENVIRONMENT
- Cloth-covered heated air-suspension seat with headrest
- External heated rear view mirrors
- Front LED driving/headlights
LOADER
- XR extended reach version
- Attachment auxiliary hydraulics
- Coupler systems – JRB or ACS compatible
TIRES
- 20.5-R25 radial Michelin SnoPlus
WARRANTY
BASE & EXTENDED WARRANTY COVERAGE
- CASE ProCare applicable on select new heavy machine orders.
See your CASE dealer for model availability and timing.
